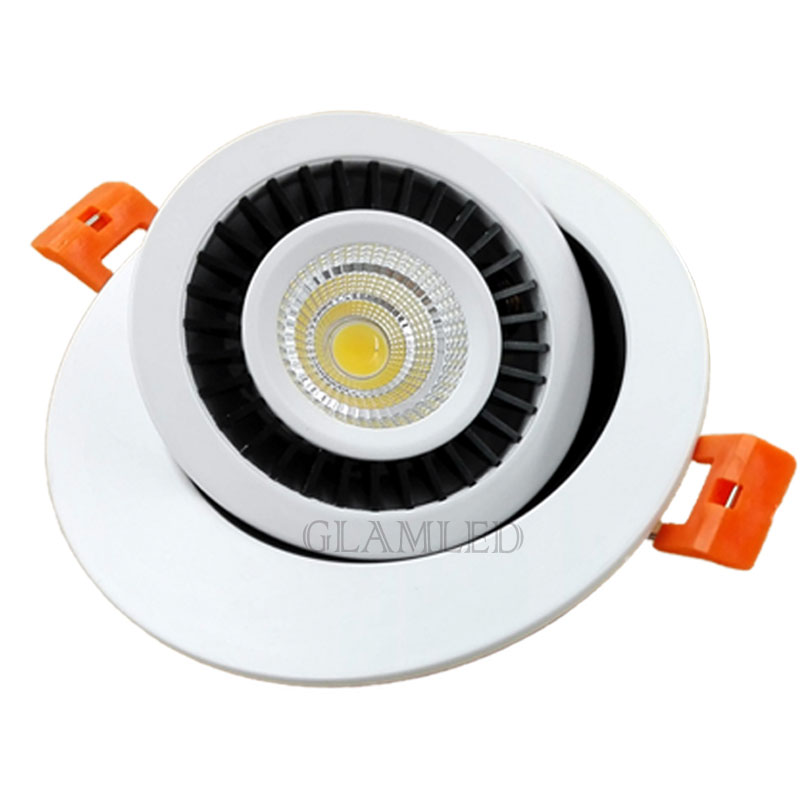

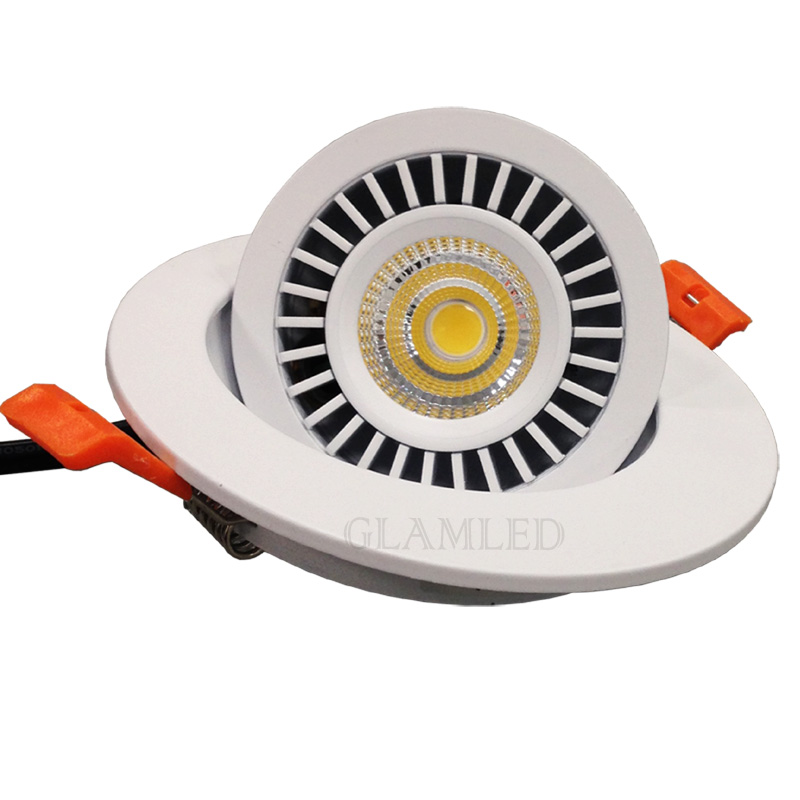

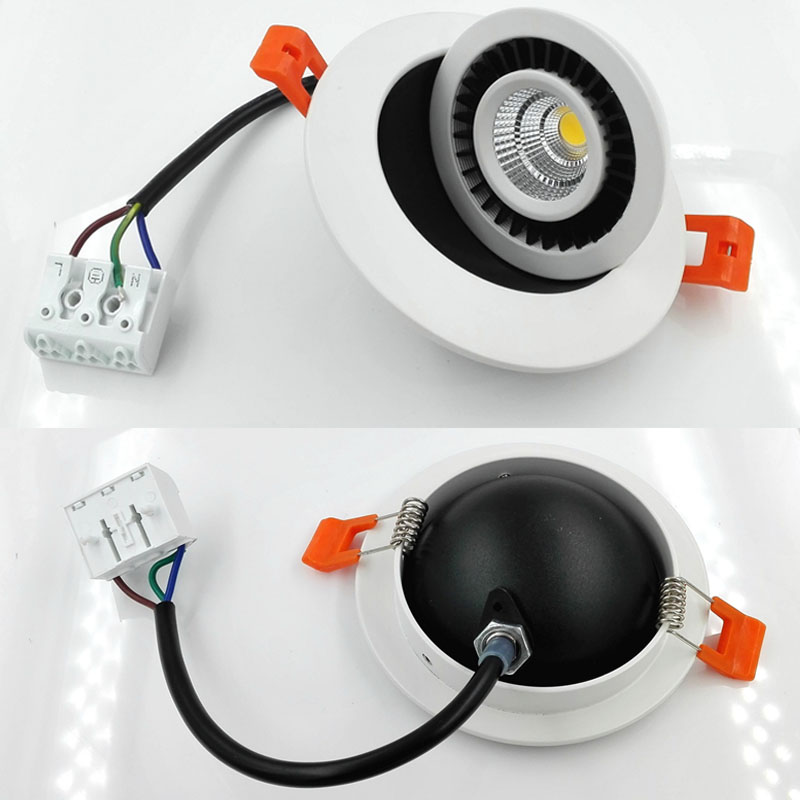

Driverless adjustable 360 degree 7W led downlight
Adopt HV-AC driverless COB LED, No need electronic driver.
Up to 80% energy saving compared to 50W halogen lamp
No UV and near-IR radiation in the light beam
Environment friendly, without Mercury
Correspond CE ,RoHS
Long lifetime up to 50,000 hours
Great Reliability supports 5 years warranty
Parameters
| Item Number | JDL06-01-7W | ||||
| Power | 7W | ||||
| Fixture Luminous Flux | 490lm / 510lm / 530lm / 560lm | ||||
| Fixture Efficiency | 75lm/W-90lm/W | ||||
| Base | / | ||||
| LED chips | HV-AC driverless COB | ||||
| CRI | 80 | ||||
| Color temp | 3000K (2700K,4000K, 6000K optional) | ||||
| Beam Angle | 38° / 60° | ||||
| IP rating | IP40 | ||||
| Dimmable | Yes | ||||
| Input voltage | 200-240Vac ,47-63Hz | ||||
| PF | ≥0.98 | ||||
| Operating Temperature | 0℃ ~ +40℃ | ||||
| Storage Temperature | -5℃ ~ +55℃ | ||||
| Materials | Aluminum /PC | ||||
| Compliance | EMC,LVD,ROHS | ||||

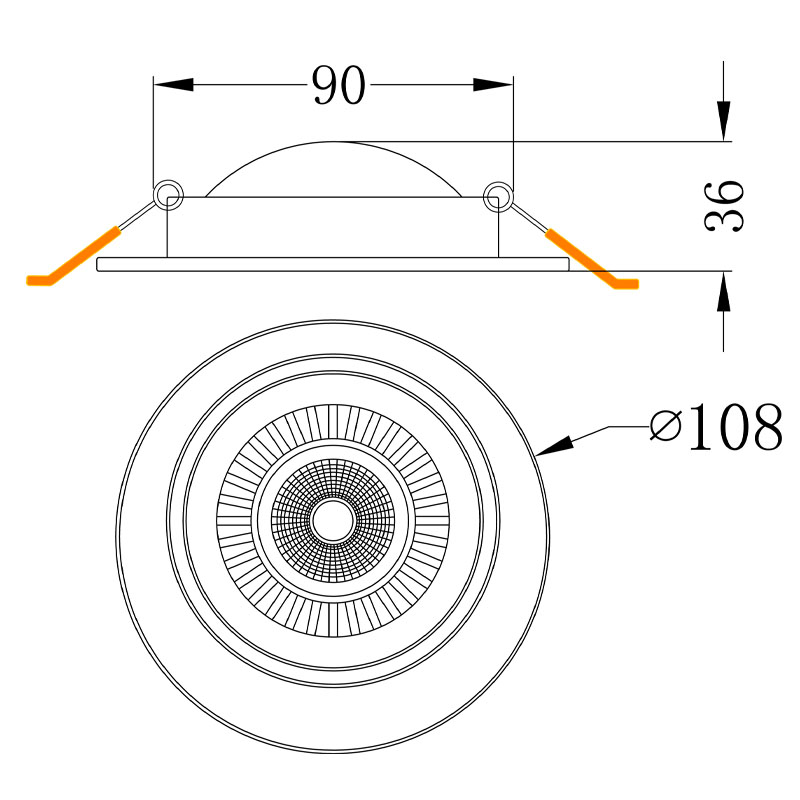

| Cut-out size | Φ90mm | ||||
| Dimension | Φ108*36mm | ||||
| Package size | Box size | 150*130*50mm(1pcs) | |||
| Outer carton | 670*320*270mm(50pcs) | ||||
| Net weight | 13.0Kg | ||||
| Gross weight | 15.0Kg | ||||
Considerations |
No water-proof,for indoor usage only; Can not be used in sealed fixtures. | ||||
