Folding 360°Rotatable Surface Mounted Led Lamp
Adopt high quality CREE COB LED.
Adjustable Downlight Patent Design.

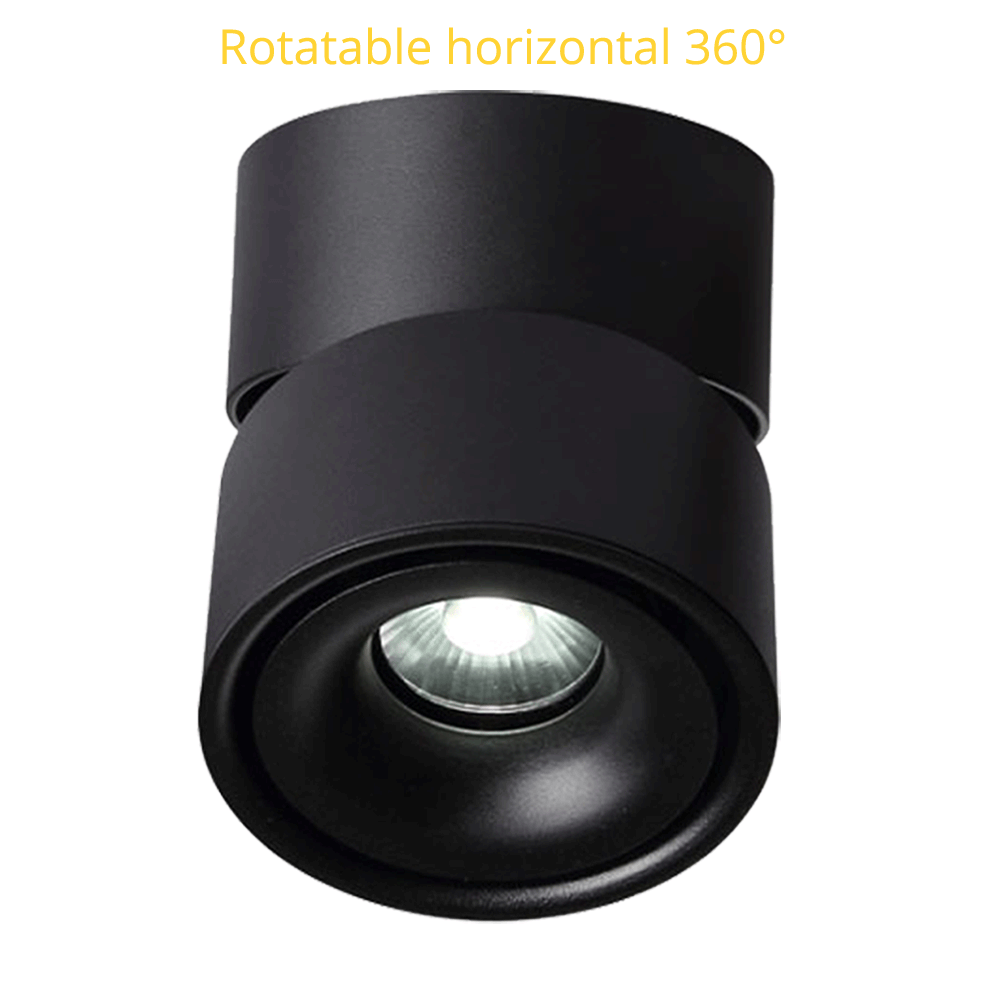

Rotatable horizontal 360° and vertical 90°.
Anti-glare lens, Low SDCM≤3.
Correspond CE ,RoHS.
Long lifetime up to 50,000 hours.
Great Reliability supports 3 years warranty.
Parameters
| Item Number | JTR02-12W | ||||
| Power | 12W | ||||
| Fixture Luminous Flux | 1000lm | ||||
| Fixture Efficiency | 80lm/w-85lm/w | ||||
| Base | / | ||||
| LED chips | CREE COB | ||||
| CRI |
80 (Ra90 optional) |
||||
| Color temp | 3000K (2700K,4000K, 6000K optional) | ||||
| Beam Angle | 36° | ||||
| IP rating | IP40 | ||||
| Dimmable | Optional | ||||
| Input voltage | 200-240Vac ,47-63Hz | ||||
| PF | ≥0.55 | ||||
| Operating Temperature | 0℃ ~ +40℃ | ||||
| Storage Temperature | -5℃ ~ +55℃ | ||||
| Materials | Aluminum6063 /PC | ||||
| Compliance | EMC,LVD,ROHS | ||||
| Installation | Surface Mounted | ||||
| Dimension | Φ100*H100mm | ||||
| Package size | Box size | 105*105*105mm(1pcs) | |||
| Outer carton | 570*240*340mm(30pcs/carton) | ||||
| Net weight | 15.0Kg | ||||
| Gross weight | 17.0Kg | ||||
Considerations |
No water-proof,for indoor usage only ; Can not be used in sealed fixtures. | ||||
