360°Rotatable Anti-glare Recessed LED Downlights
Adopt high quality Bridgelux COB LED.
Deeply Anti-glare optical lens design.
Rotatable horizontal 360° for all directions.
Low SDCM≤3, high CRI85
Correspond CE ,RoHS.
Long lifetime up to 50,000 hours.
Great Reliability supports 3 years warranty.
Parameters
| Item Number | JDL09-7W | JDL09-15W | JDL09-20W | JDL09-30W | |
| Power | 7W | 15W | 20W | 30W | |
| Luminous Flux | 595lm | 1275lm | 1700lm | 2550lm | |
| Fixture Efficiency | 80lm/w-90lm/w | ||||
| Cut-out size | 75-80mm | 120-125mm | 120-125mm | 145-155mm | |
| LED chips | Bridgelux COB LED | ||||
| CRI |
83 (Ra90 optional) |
||||
| Color temp | 3000K (2700K,4000K, 6000K optional) | ||||
| Beam Angle | 15°/24°/38° | ||||
| IP rating | IP40 | ||||
| Dimmable | Optional | ||||
| Input voltage | 100-277Vac ,47-63Hz | ||||
| PF | ≥0.55 | ||||
| Operating Temperature | 0℃ ~ +40℃ | ||||
| Storage Temperature | -5℃ ~ +55℃ | ||||
| Materials | Die-casting Aluminum / PC | ||||
| Compliance | EMC,LVD,ROHS | ||||
| Installation | Recessed ceiling installation | ||||
| Dimension | Φ90*H72mm | Φ135*H105mm | Φ135*H105mm | Φ165*H135mm | |
| Package size |
57*24*34cm(30pcs) |
57*24*34cm(30pcs) | 57*24*34cm(20pcs) | 57*24*34cm(10pcs) | |
| 57*24*34cm(10pcs) | |||||
| Net weight | 15.5Kg | 16.0Kg | 16.5Kg | 14.0Kg | |
| Gross weight | 17.5Kg | 18.0Kg | 18.5Kg | 16.0Kg | |
Considerations |
No water-proof,for indoor usage only ; Can not be used in sealed fixtures. | ||||

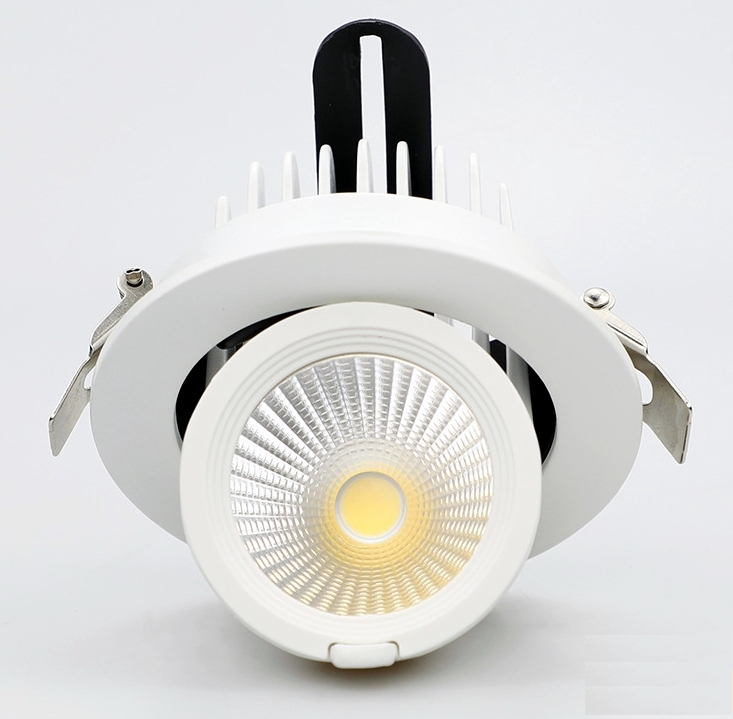

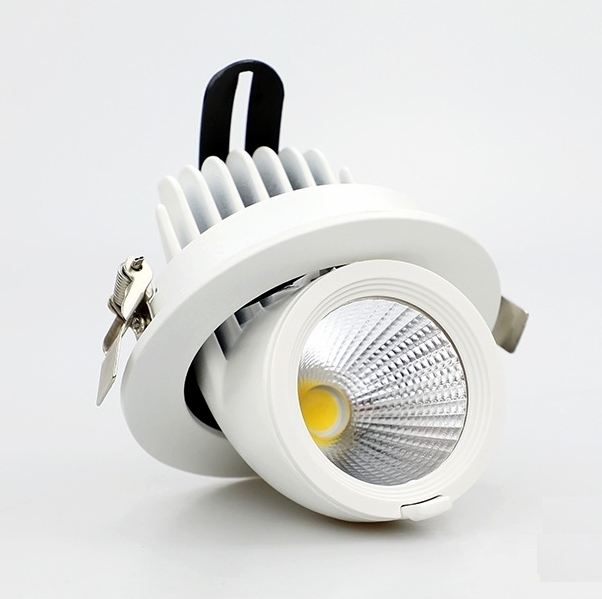

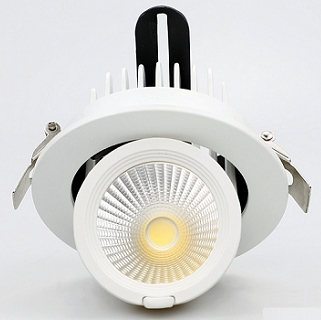

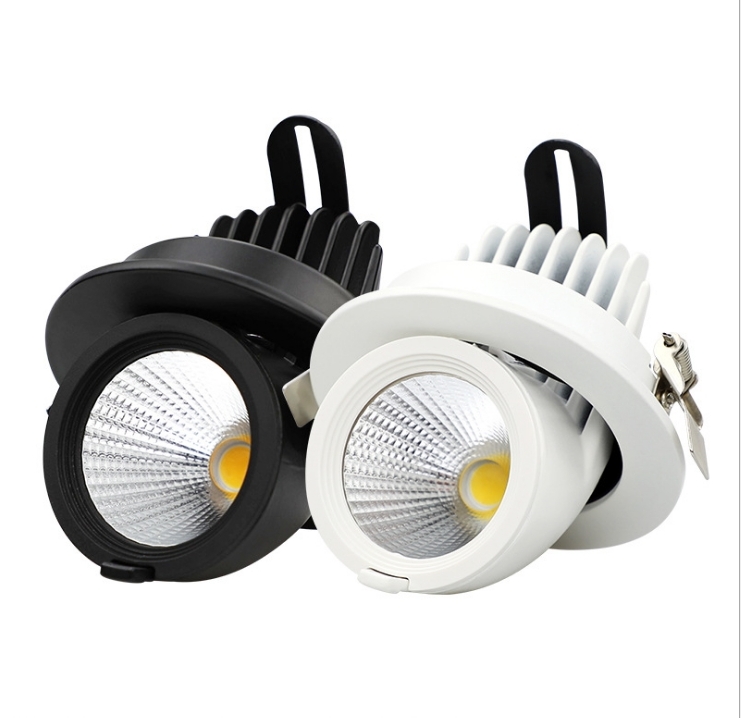

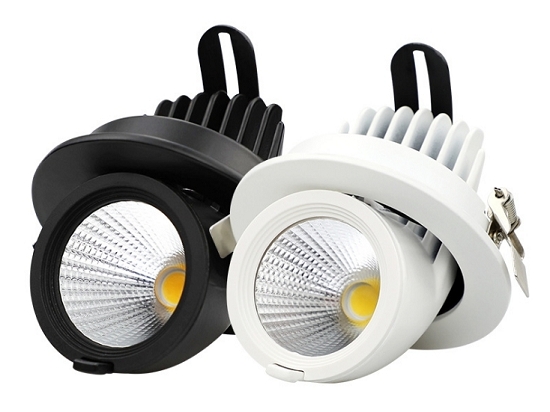

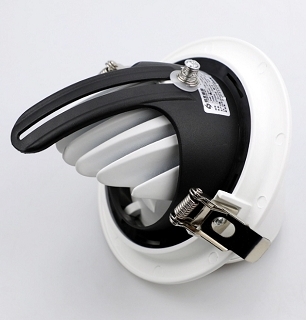

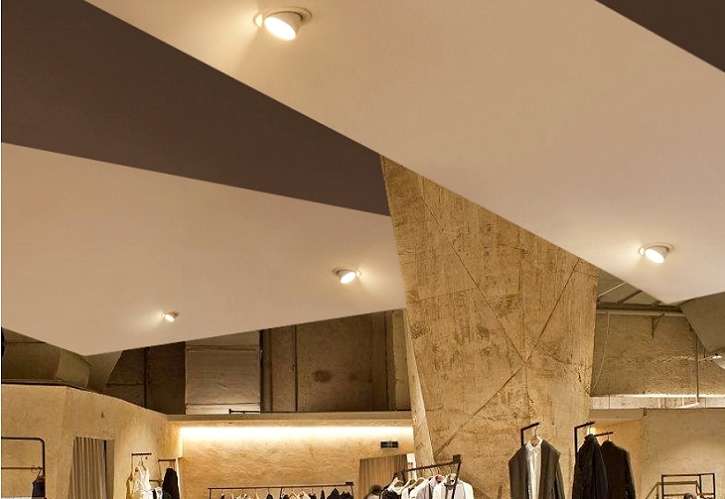

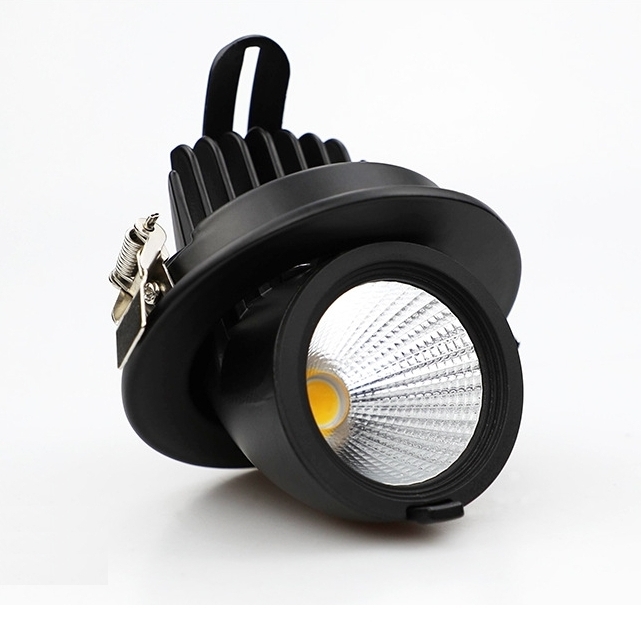

Image Show
