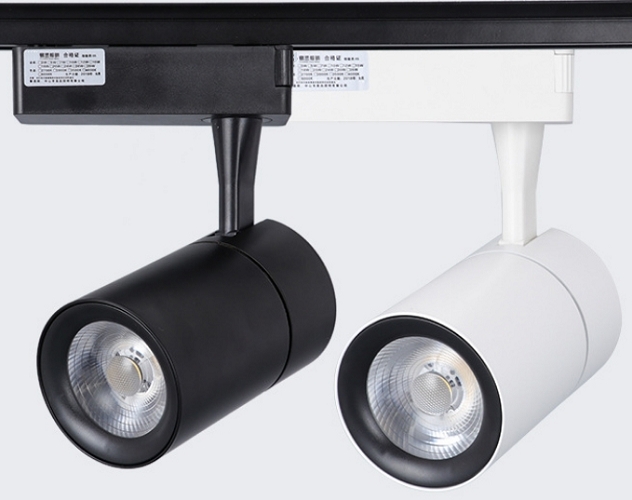

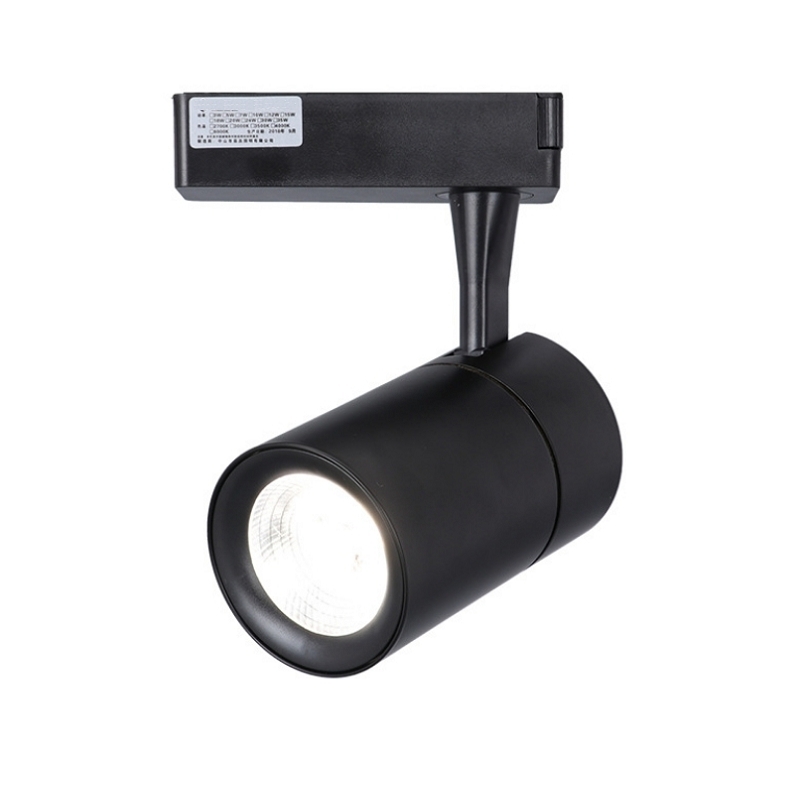

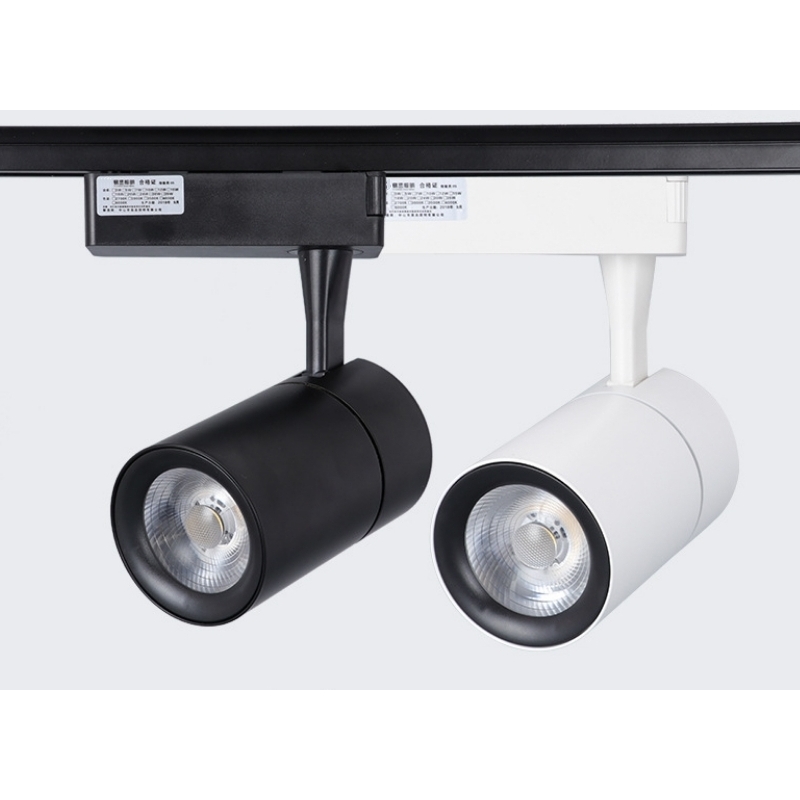

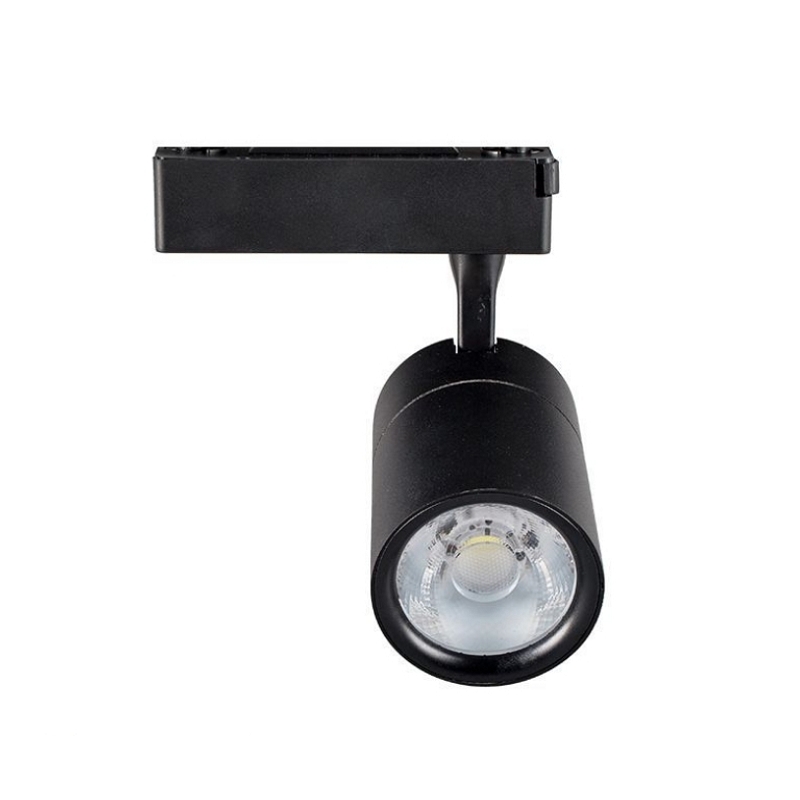

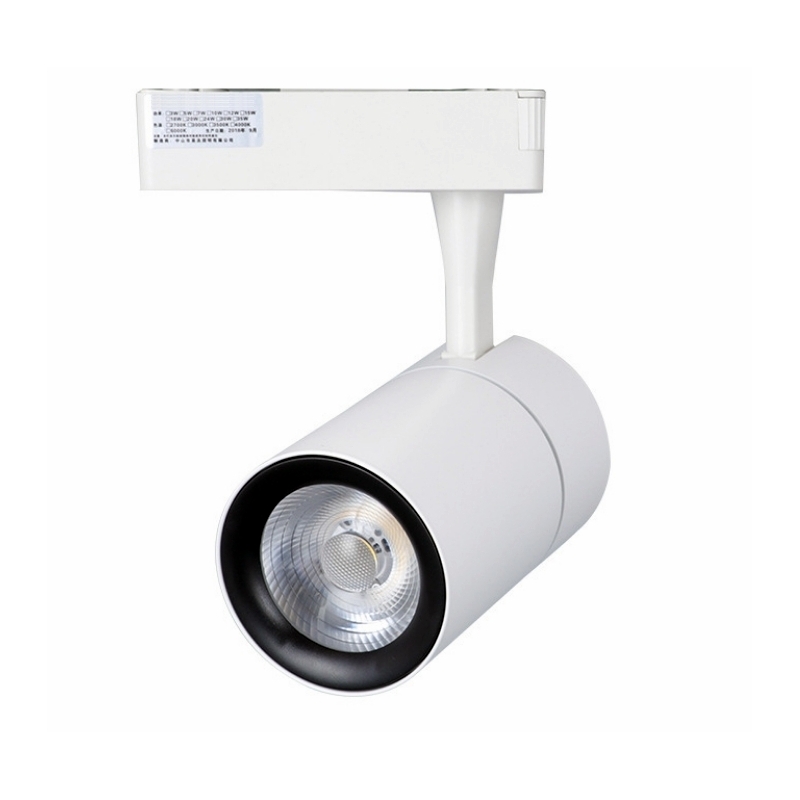

Ra85 10W-30W COB LED Tracklight for shops lighting
Adopt branded Bridgelux Led chip, high CRI for shops lighting.
Modern designed white/black die-casting Alu housing in good heat dissipation.
No UV and near-IR radiation in the light beam
Environment friendly, without Mercury
Correspond CE ,RoHS
Long lifetime up to 50,000 hours
Great Reliability supports 3-5 years warranty
Parameters
| Item Number | JTR05-10W | JTR05-15W | JTR05-20W | JTR05-30W | ||
| Power | 10W | 15W | 20W | 30W | ||
| Fixture Luminous Flux | 900lm | 1350lm | 1800lm | 2700lm | ||
| Fixture Efficiency | 85lm/W-90lm/W | |||||
| Track rail connector | 2-wires, 3-wires connector | |||||
| LED chips | Bridgelux | |||||
| CRI | 85/93 | |||||
| Color Temp | 3000K (2700K, 4000K, 5000K optional) | |||||
| Beam Angle | 24° | |||||
| IP rating | IP20 | |||||
| Dimmable | Available | |||||
| Input voltage | 100-240Vac ,47-63Hz | |||||
| PF | ≥0.90 | |||||
| Operating Temperature | 0℃ ~ +40℃ | |||||
| Storage Temperature | -5℃ ~ +55℃ | |||||
| Materials | Die-casting Aluminum /PC | |||||
| Compliance | CE, EMC,LVD,ROHS | |||||
| Power supply | CE passed driver, BOKE/LIFUD/Eaglerise | |||||
| Dimension | Φ60*100mm | Φ60*100mm | Φ75*125mm | Φ90*135mm | ||
