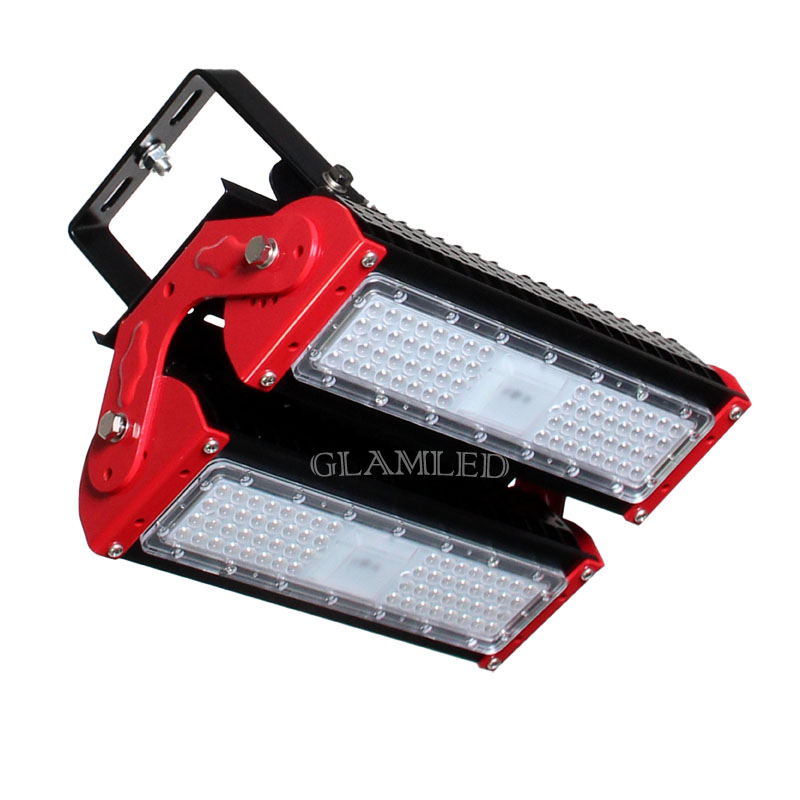

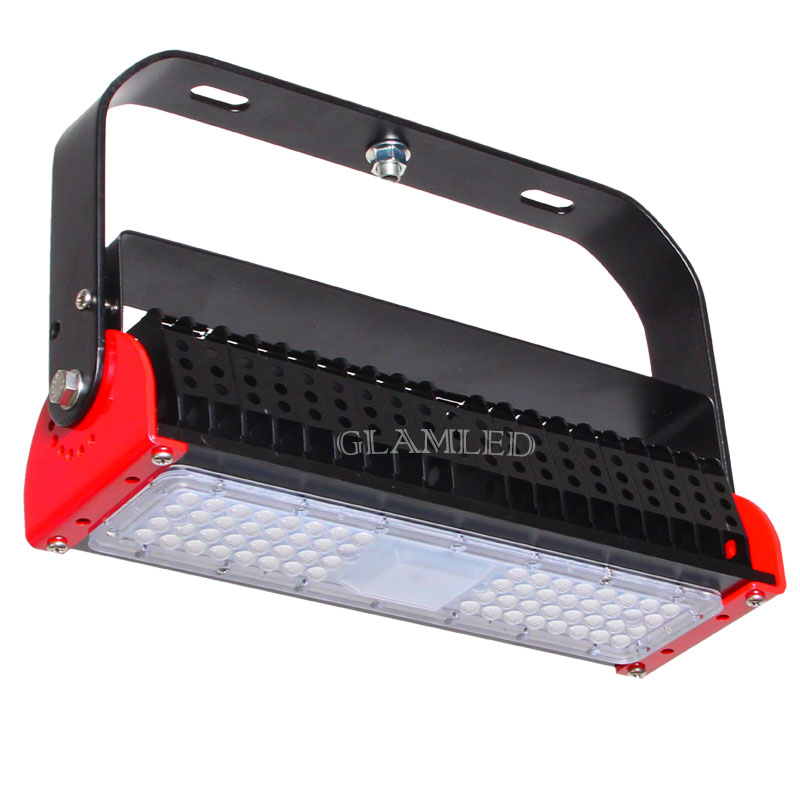

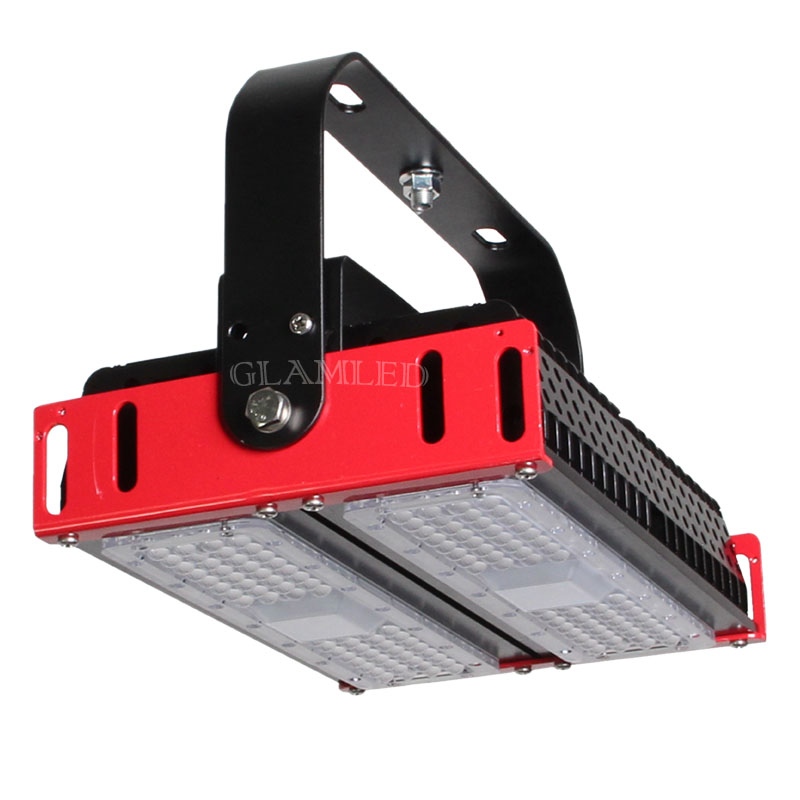

AC Driverless LED Modules 100W High Bay Light
No driver thus it can avoid the failure of driver ,More stable performance.
Adopt high quality PHILIPS 3030 LED.
Less weight, Save much freight cost.
Environment friendly, without Mercury.
Correspond CE ,RoHS
Long lifetime up to 50,000 hours
Great Reliability supports 3 years warranty
Parameters
| Item Number | JTU01-50W | JTU01-100W | JTU01-150W | JTU01-200W |
| Power | 50W | 100W | 150W | 200W |
| Fixture Luminous Flux | 5500lm | 11000lm | 16500lm | 22000lm |
| Fixture Efficiency | 100lm/W-120lm/W | |||
| LED chips |  |
|||
| CRI | 80 | |||
| Color temp | 4000K (2700K, 3000K, 6000K optional) | |||
| Beam Angle | 60°/135°x70° | |||
| IP rating | IP65 | |||
| Power Supply | HV Driverless Technology | |||
| Input voltage | 200-240Vac ,47-63Hz | |||
| PF | ≥0.98 | |||
| Operating Temperature | -30℃ +50℃ | |||
| Storage Temperature | -30℃ +70℃ | |||
| Materials | Aluminum /PC lens | |||
| Compliance | EMC,LVD,ROHS | |||
| Equivalent | 150W HID | 250W HID | 400W HID | 600W HID |

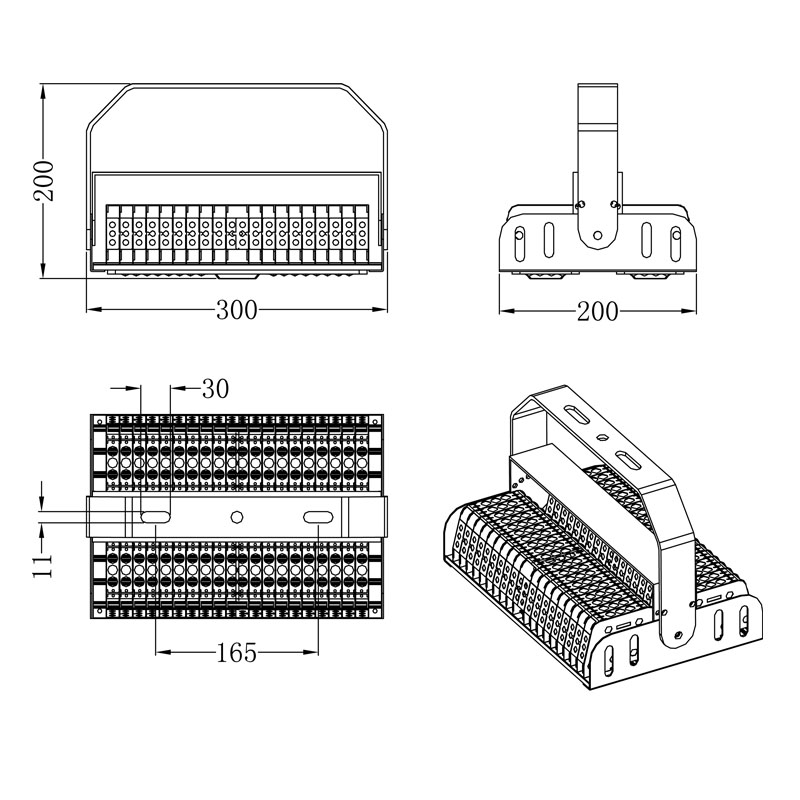

| Dimension | 300*100*200mm | 300*200*200mm | 300*310*200mm | 300*415*200mm |
| Package size | 320*120*225mm(1pcs) | 380*280*230mm(1pcs) | 380*390*230mm(1pcs) | 380*490*230mm(1pcs) |
| N.W | 2.2Kg | 2.7Kg | 4.0Kg | 5.0Kg |
| G.W | 3.0Kg | 4.0Kg | 6.0Kg | 7.0Kg |
