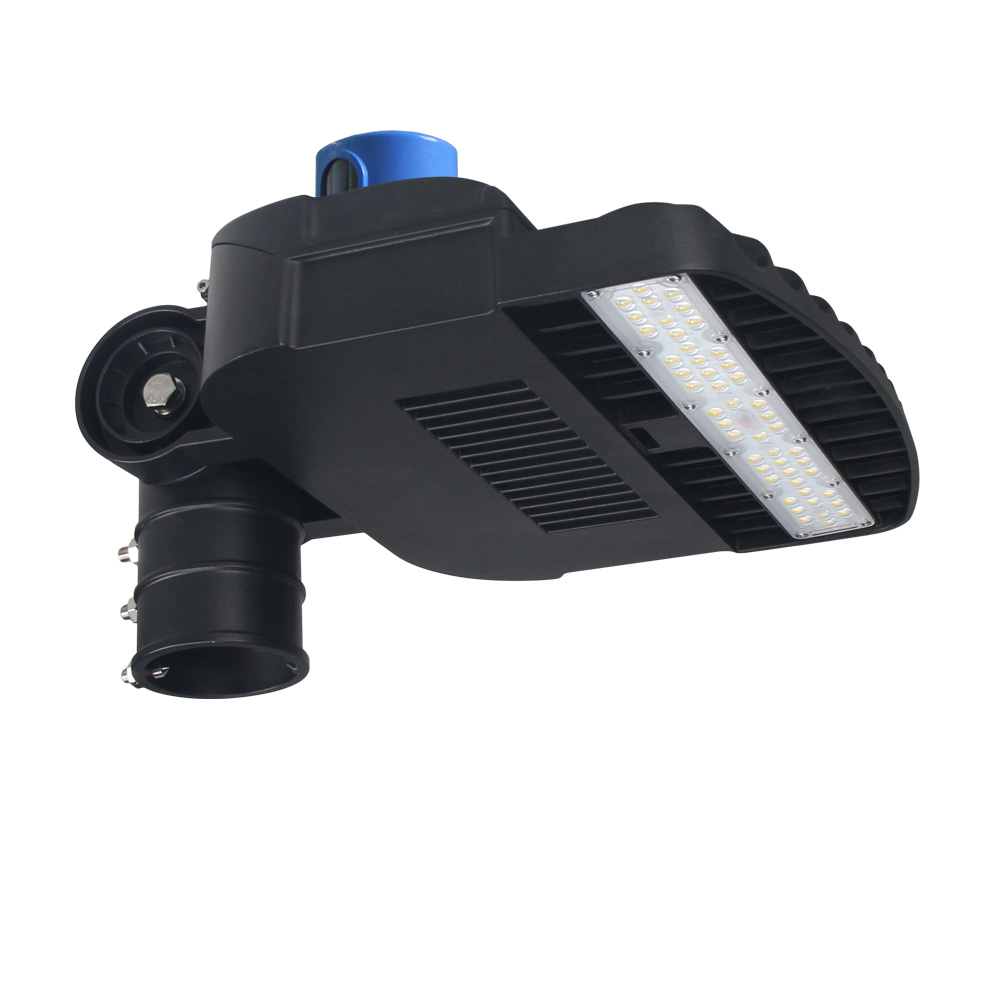

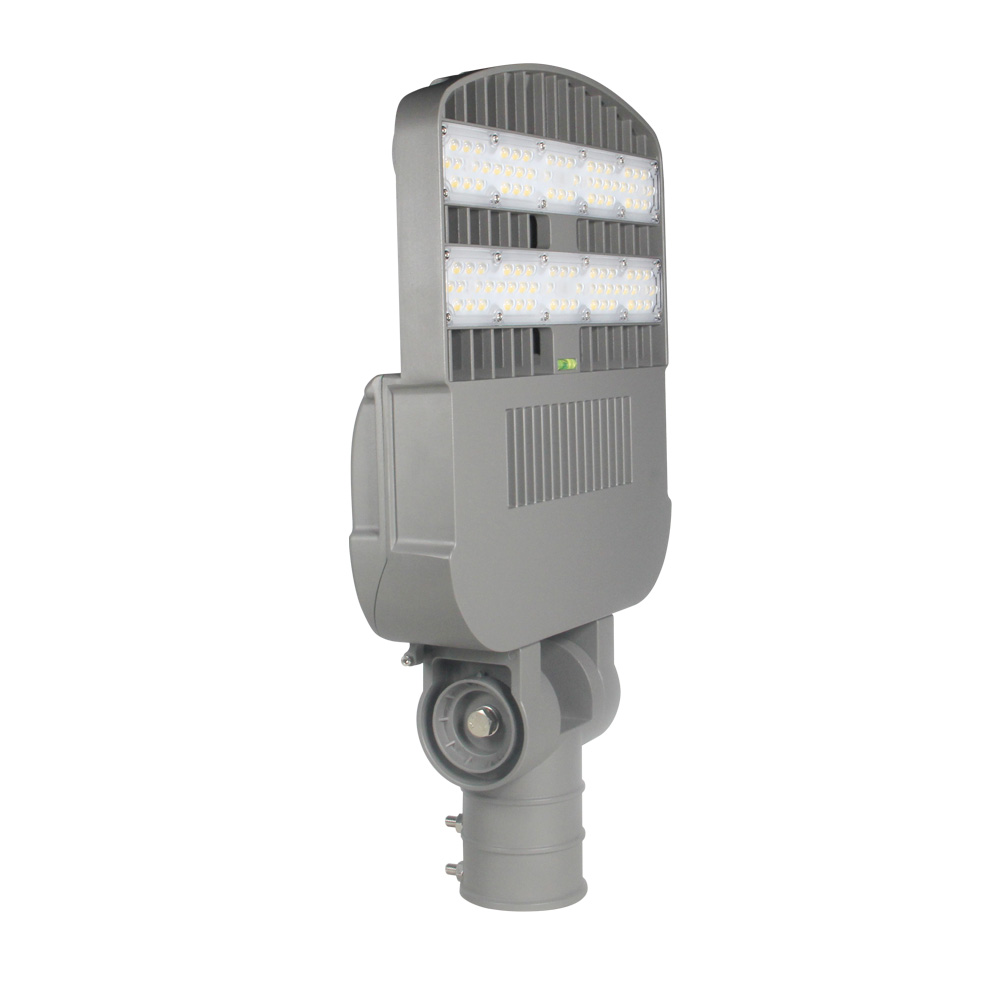

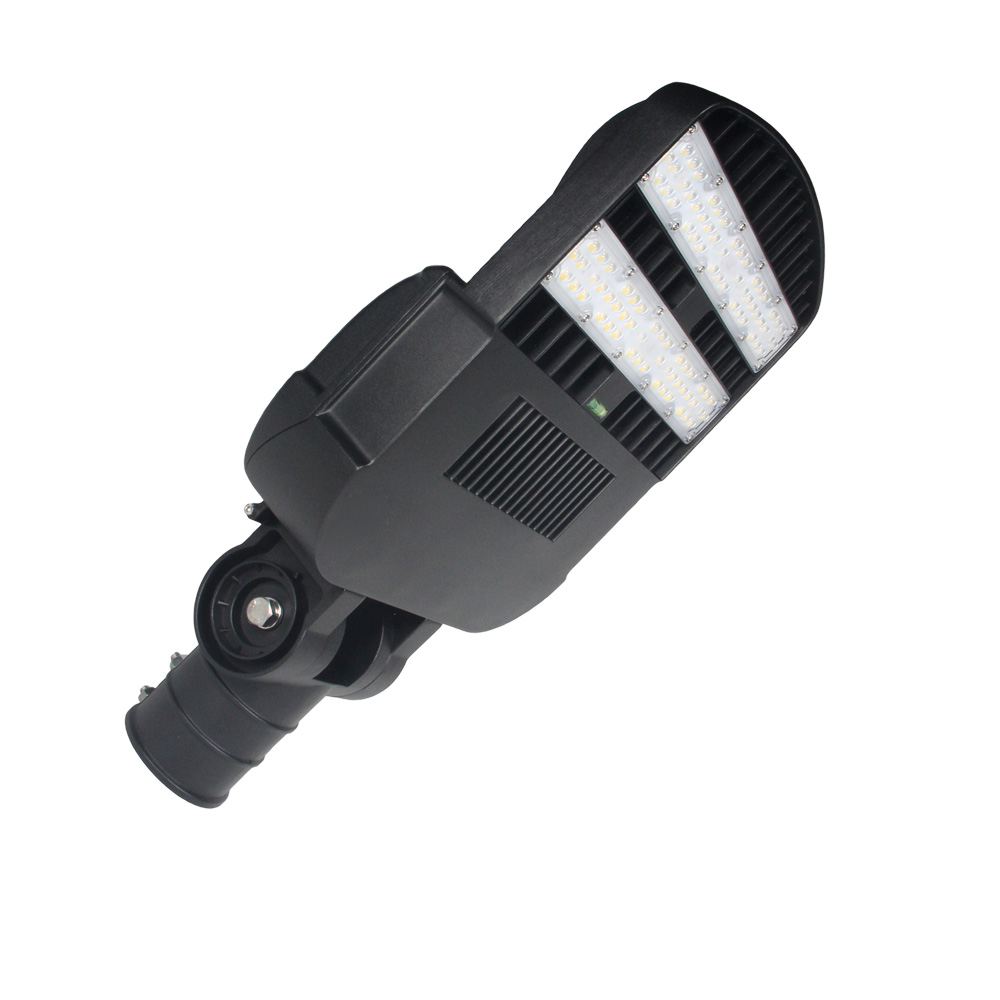

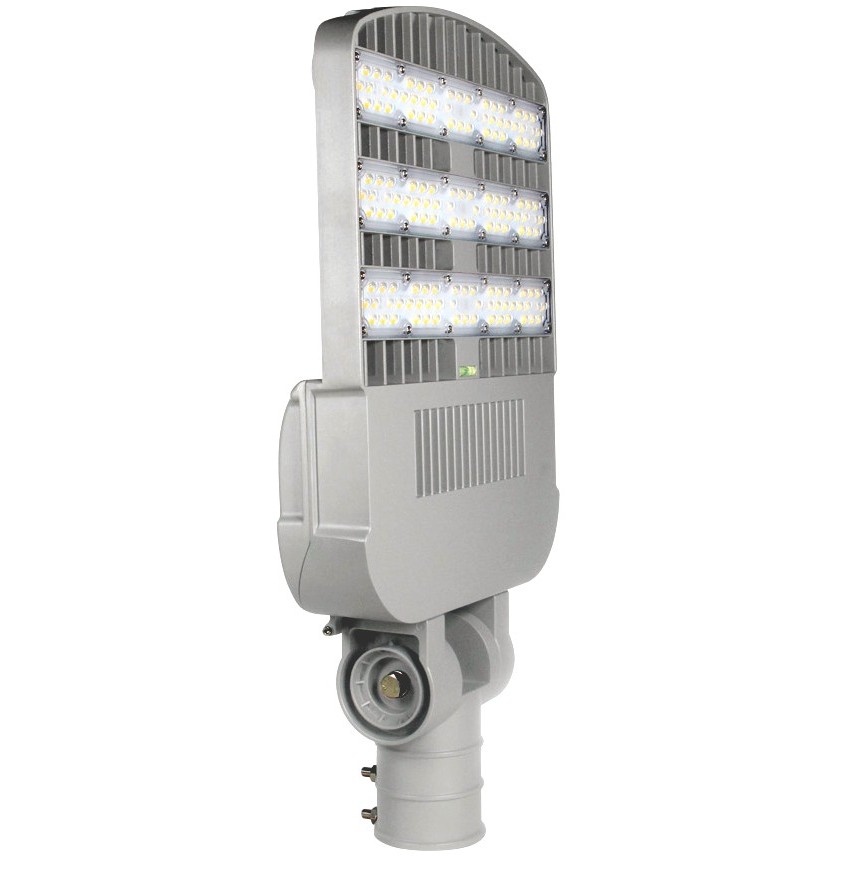

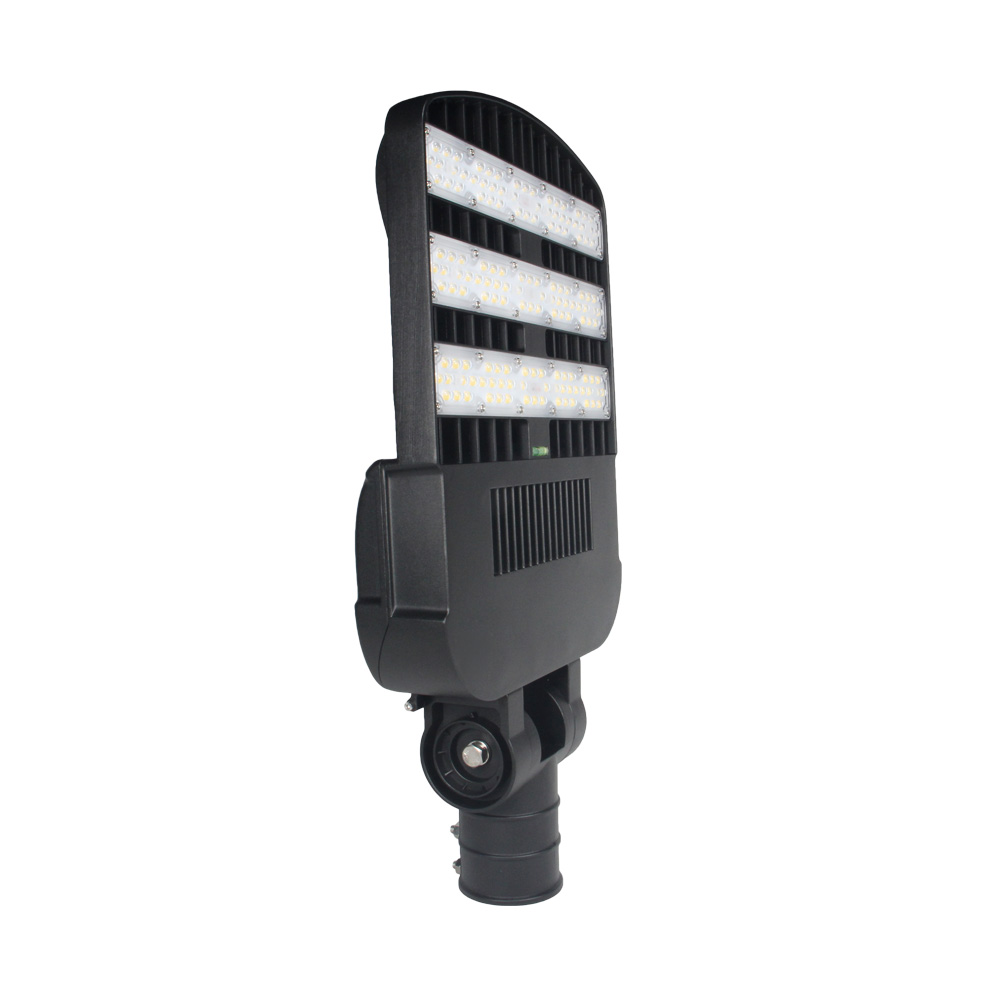

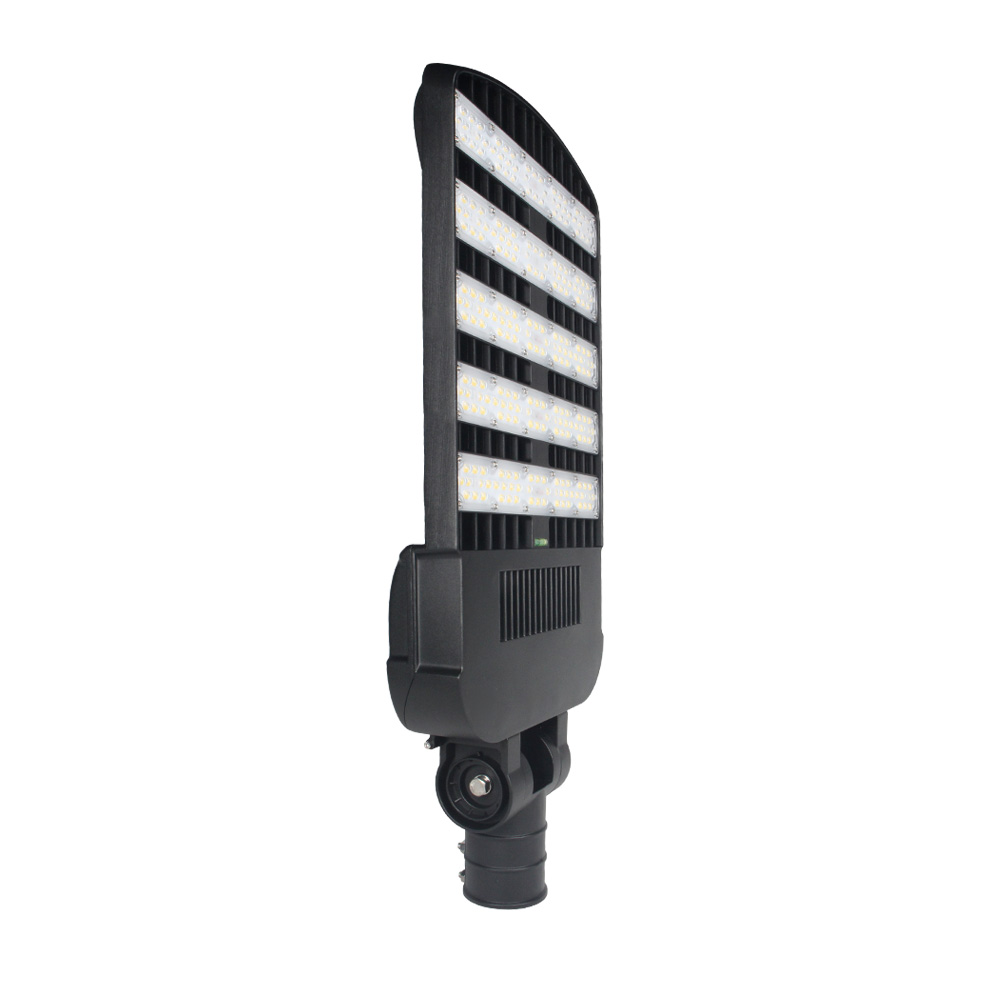

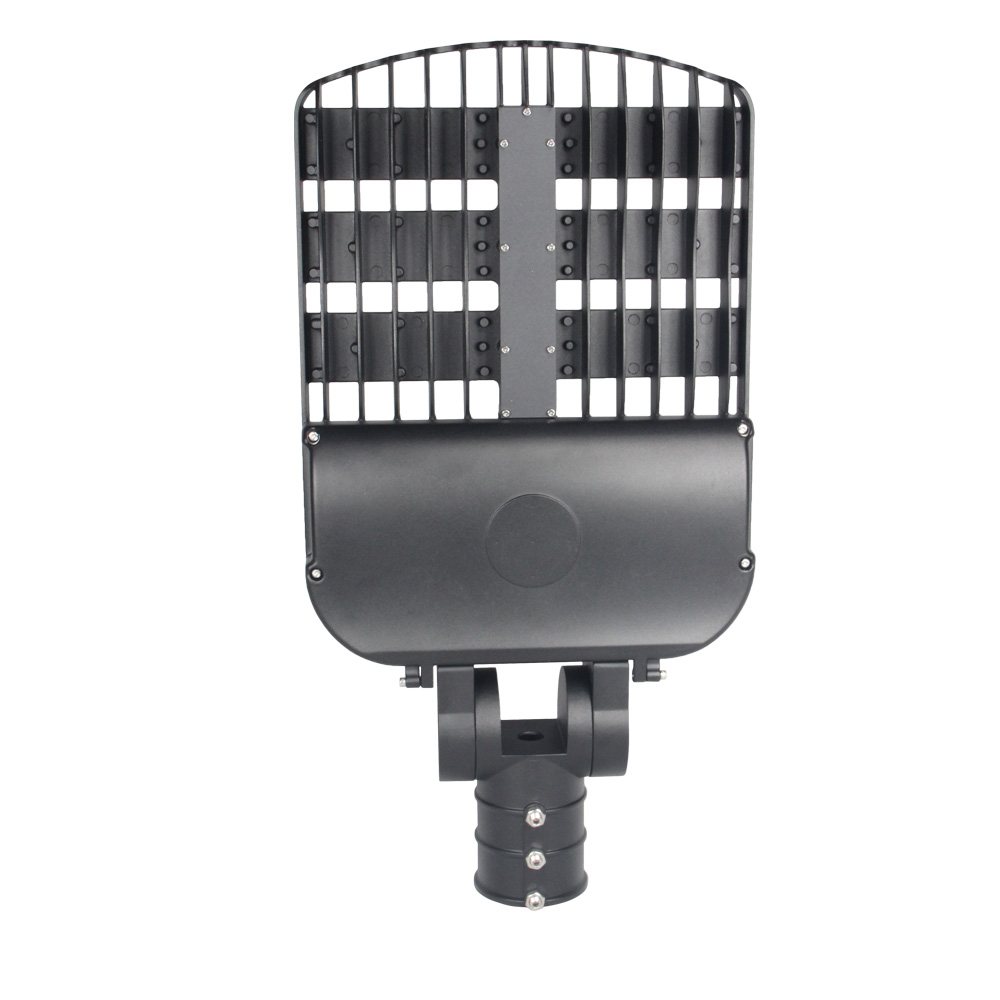

High energy-saving 130LM/W IP67 Led Street Light
Adopt Top-rank PHILIPS 3030 LED.
Up to 85% energy saving compared to HID lamps.
No UV and near-IR radiation in the light beam
Environment friendly, without Mercury
Correspond CE ,RoHS
Long lifetime up to 50,000 hours
Great Reliability supports 5 years warranty
Parameters
| Item Number | JSL05-50W | JSL05-100W | JSL05-150W | JSL05-200W | |
| Fixture Color | Silver white, Black, Grey, Coffee brown | ||||
| Luminous Flux | 6500lm | 13000lm | 19500lm | 26000lm | |
| Fixture Efficiency | 130-135lm/W (160lm/W optional) | ||||
| LED chips | PHILIPS | ||||
| CRI | 73/83 | ||||
| Color temp | 4000K (3000K, 5000K, 6500K optional) | ||||
| Beam Angle | 15° / 30° / 60° / 90°/ 80°x140° | ||||
| IP rating | IP67 | ||||
| Power Supply | MEAN WELL | ||||
| Input voltage | 100-277Vac ,47-63Hz | ||||
| PF | ≥0.98 | ||||
| Operating Temperature | -30℃ ~ + 60℃ | ||||
| Storage Temperature | -30℃ ~ +70℃ | ||||
| Materials | Die-casting Aluminum /PC | ||||
| Compliance | EMC,LVD,ROHS | ||||
| Dimmable | Dimming / Daylight Sensor / Emergency kits / Zigbee wireless control are available. | ||||
| Packing | Dimension | L471*W320*H88mm | L540*W320*H88mm | L615*W320*H88mm | L685*W320*H88mm |
| Carton | 490*350*105mm | 560*350*105mm | 630*350*105mm | 700*350*105mm | |
| Net weight | 4.0Kg | 5.3Kg | 6.8Kg | 9.7Kg | |
| Gross weight | 5.0Kg | 6.5Kg | 8.0Kg | 10.5Kg | |
