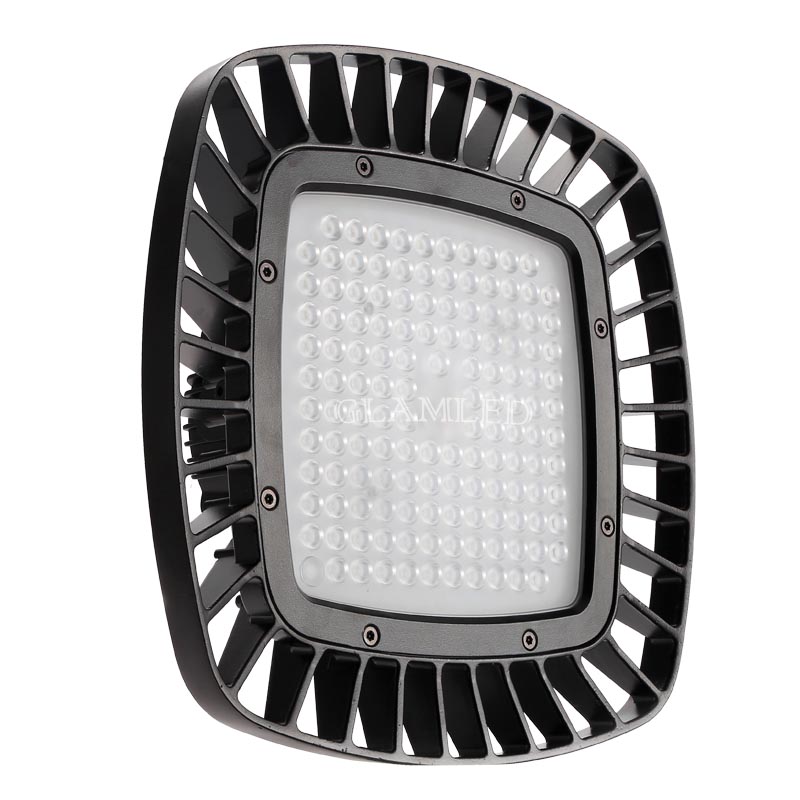

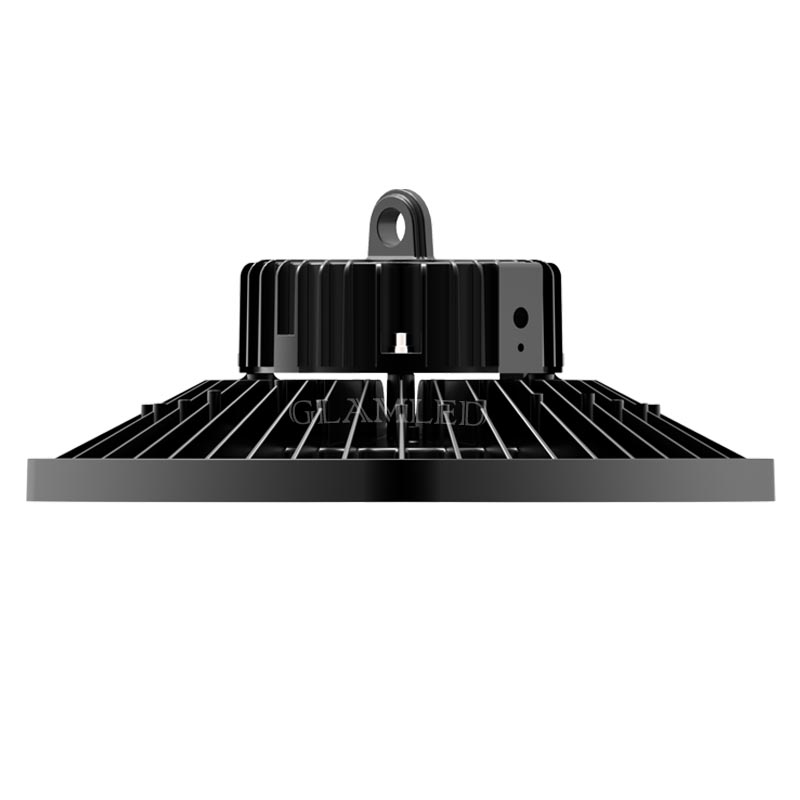

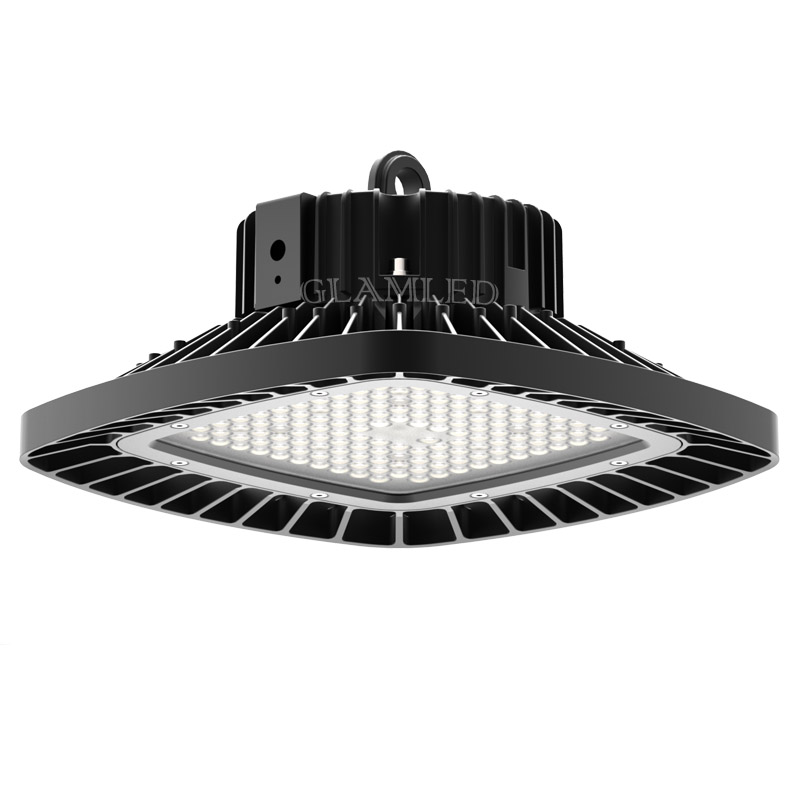

Square Shape UFO LED HighBay 150W
Adopt high quality NICHIA 3030 LED.
Up to 85% energy saving compared to halogen lamp
No UV and near-IR radiation in the light beam
Environment friendly, without Mercury
Correspond CE ,RoHS
Long lifetime up to 50,000 hours
Great Reliability supports 5 years warranty
Parameters
| Item Number | JBL04-150W-S | ||||
| Power | 150W | ||||
| Fixture Luminous Flux | 16500lm / 17250lm / 18750lm / 19500lm | ||||
| Fixture Efficiency | 110lm/W-130lm/W | ||||
| LED chips | NICHIA | ||||
| CRI | 80 | ||||
| Color temp | 4000K (2700K, 3000K, 6000K optional) | ||||
| Beam Angle | 50°/80° | ||||
| IP rating | IP65 | ||||
| Power Supply | MEAN WELL | ||||
| Input voltage | 90-305Vac ,47-63Hz | ||||
| PF | ≥0.98 | ||||
| Dimmable | Optional | ||||
| Operating Temperature | -30℃ ~ +50℃ | ||||
| Storage Temperature | -30℃ ~ +70℃ | ||||
| Materials | Aluminum /PC | ||||
| Compliance | EMC,LVD,ROHS | ||||

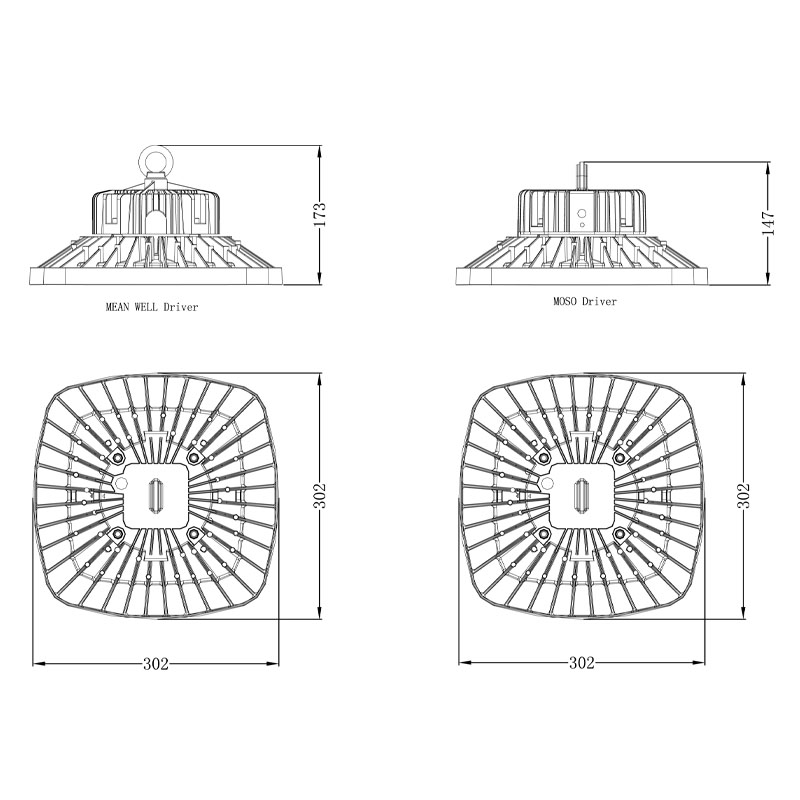

| Dimension | 302*302*173mm | ||||
| Package size | Box size | / | |||
| Outer carton | 370*370*220mm(1pcs) | ||||
| Net weight | 5.5Kg | ||||
| Gross weight | 6.5Kg | ||||
