Artistic Orange Colour High Bay Light,150lm/w
Adopt Top-brand CREE 3030 LED.
Up to 85% energy saving compared to halogen lamp
No UV and near-IR radiation in the light beam
Environment friendly, without Mercury
Correspond CE ,RoHS
Long lifetime up to 50,000 hours
Great Reliability supports 5 years warranty
Parameters
| Item Number | JBL07-100W | JBL07-120W | |||
| Power | 100W | 120W | |||
| Fixture Luminous Flux | 15000lm | 18000lm | |||
| Fixture Efficiency | 145lm/W-150lm/W | ||||
| LED chips | CREE 3030 | ||||
| CRI | 72/82 | ||||
| Color temp | 5000K (4000K, 6000K optional) | ||||
| Beam Angle | 60°/ 90°/ 120° | ||||
| IP rating | IP65 | ||||
| Power Supply | MOSO, MEAN WELL | ||||
| Input voltage | 90-305Vac ,47-63Hz | ||||
| PF | ≥0.98 | ||||
| Dimmable | Optional | ||||
| Operating Temperature | -30℃ ~ +50℃ | ||||
| Storage Temperature | -30℃ ~ +70℃ | ||||
| Materials | Aluminum /PC | ||||
| Compliance | EMC,LVD,ROHS | ||||

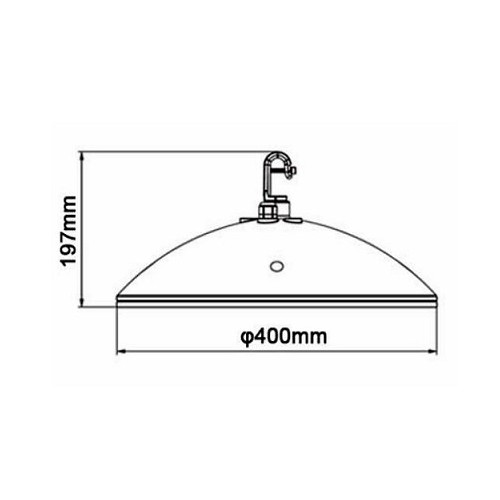

| Dimension | Φ400*197mm | ||||
| Package size | Box size | / | |||
| Outer carton | 475*475*210mm(1pcs) | ||||
| Net weight | 5.8Kg | ||||
| Gross weight | 6.8Kg | ||||
