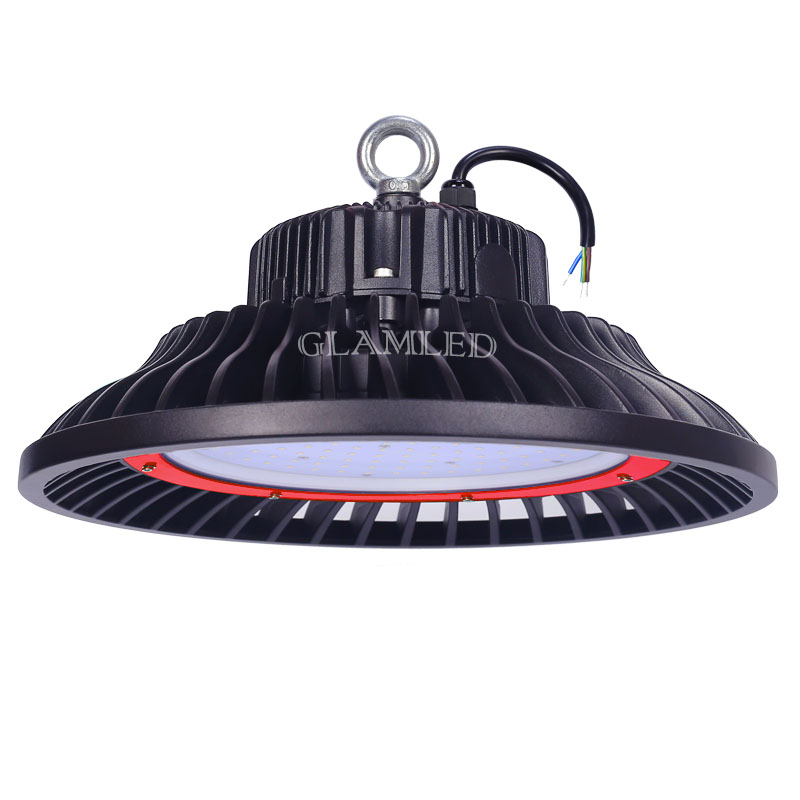

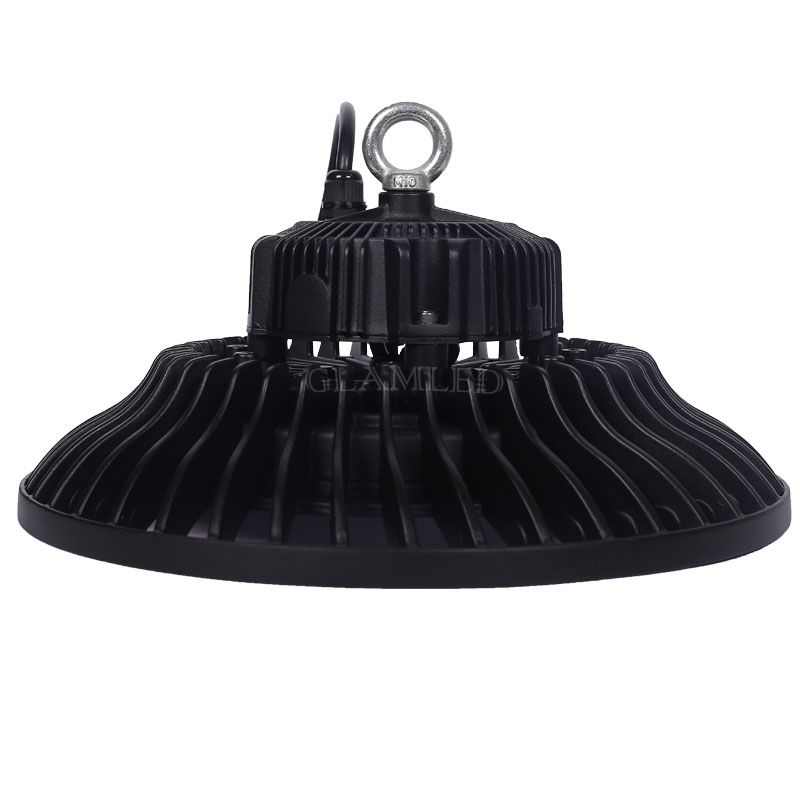

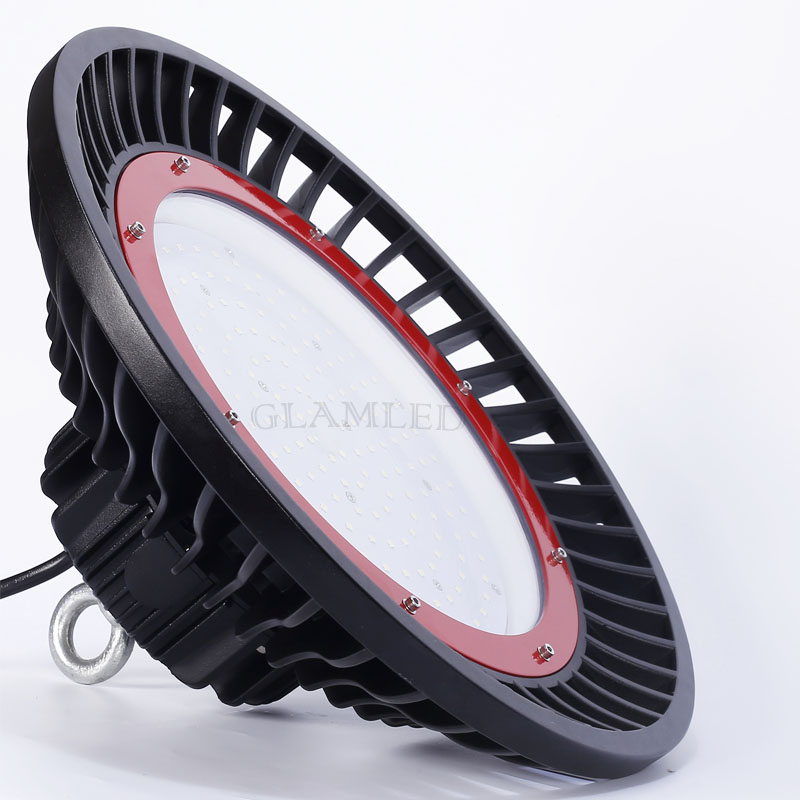

200w Industrial Lighting LED High Bay Lighting

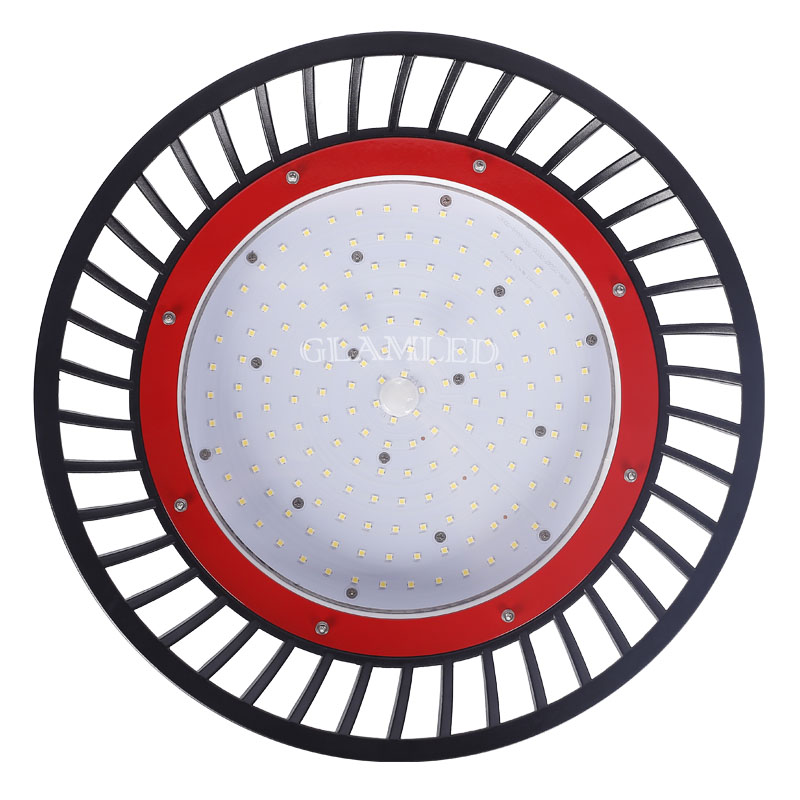

Adopt high quality PHILIPS 3030 LED.
Up to 85% energy saving compared to halogen lamp
No UV and near-IR radiation in the light beam
Environment friendly, without Mercury
Correspond CE ,RoHS
Long lifetime up to 50,000 hours
Great Reliability supports 5 years warranty
Parameters
| Item Number | JBL03-200W | ||||
| Power | 200W | ||||
| Fixture Luminous Flux | 22000lm / 23000lm / 25000lm / 26000lm | ||||
| Fixture Efficiency | 110lm/W-130lm/W | ||||
| LED chips | PHILIPS Lumileds | ||||
| CRI | 80 | ||||
| Color temp | 4000K (2700K, 3000K, 6000K optional) | ||||
| Beam Angle | 120° | ||||
| IP rating | IP65 | ||||
| Power Supply | MEAN WELL | ||||
| Input voltage | 90-305Vac ,47-63Hz | ||||
| PF | ≥0.98 | ||||
| Dimmable | Optional | ||||
| Operating Temperature | -30℃ ~ +50℃ | ||||
| Storage Temperature | -30℃ ~ +70℃ | ||||
| Materials | Aluminum /PC | ||||
| Compliance | EMC,LVD,ROHS | ||||
| Dimension | Φ367*208mm | ||||
| Package size | Box size | / | |||
| Outer carton | 430*220*440mm(1pcs) | ||||
| Net weight | 7.0Kg | ||||
| Gross weight | 8.5Kg | ||||
