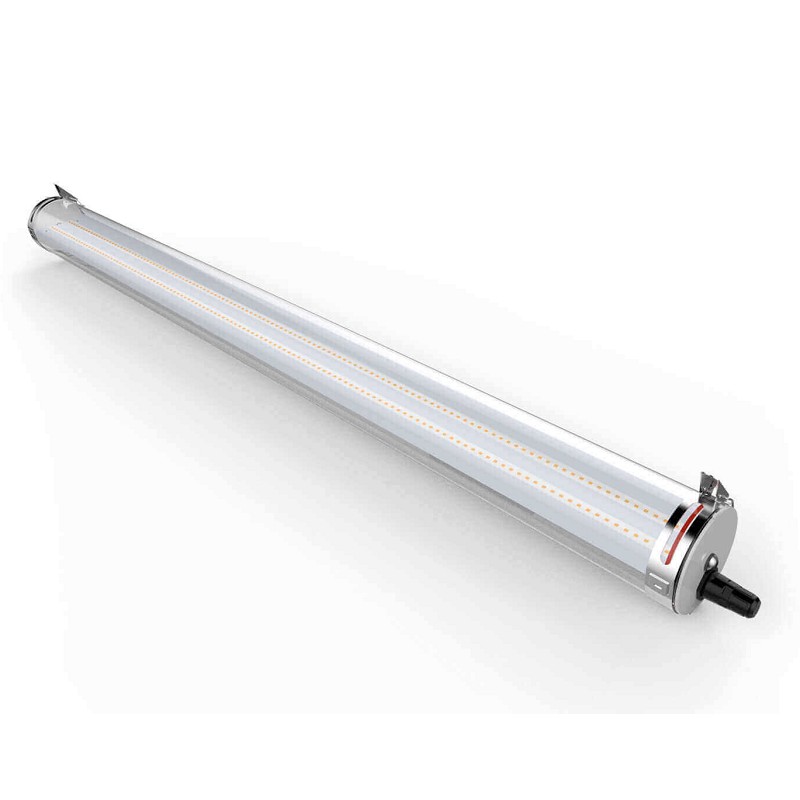

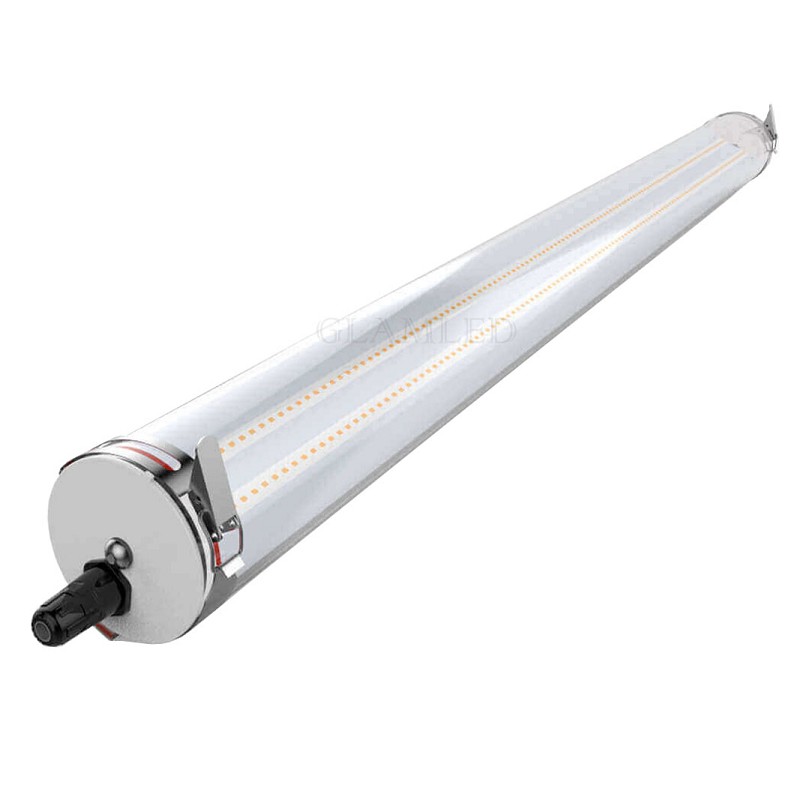

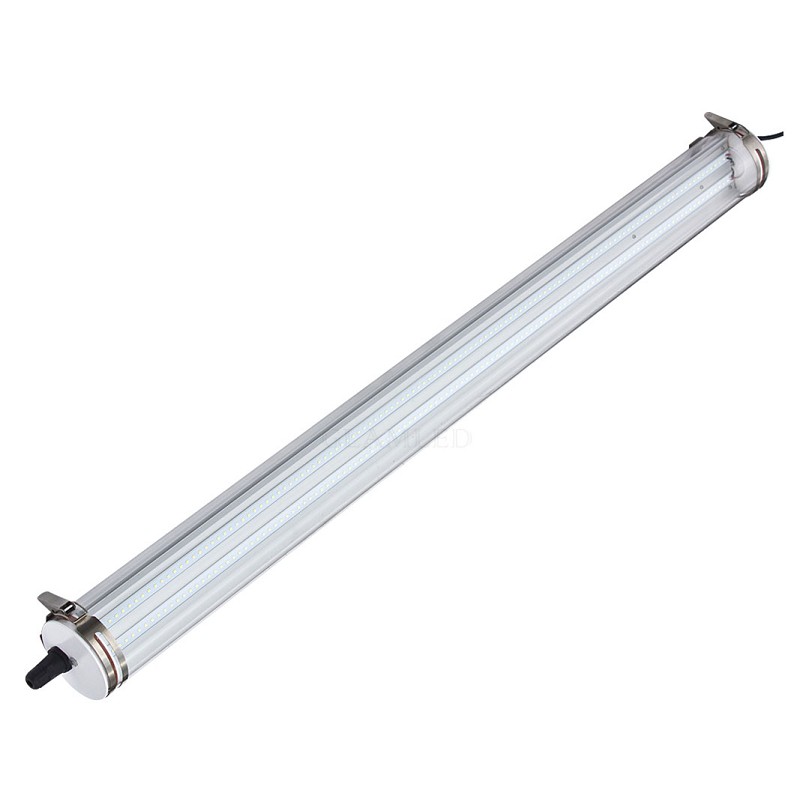

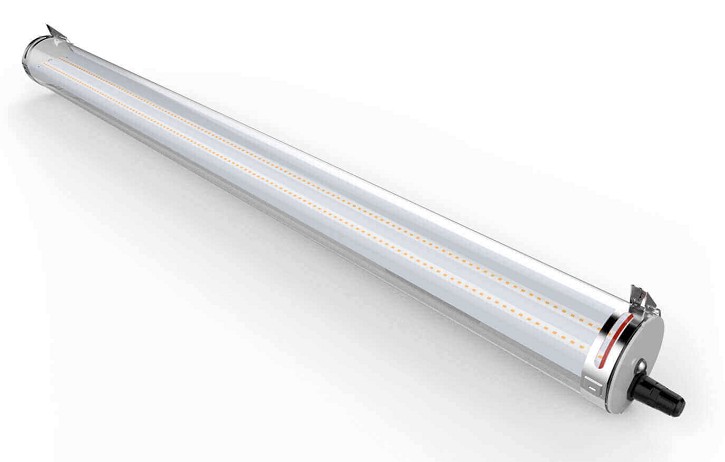

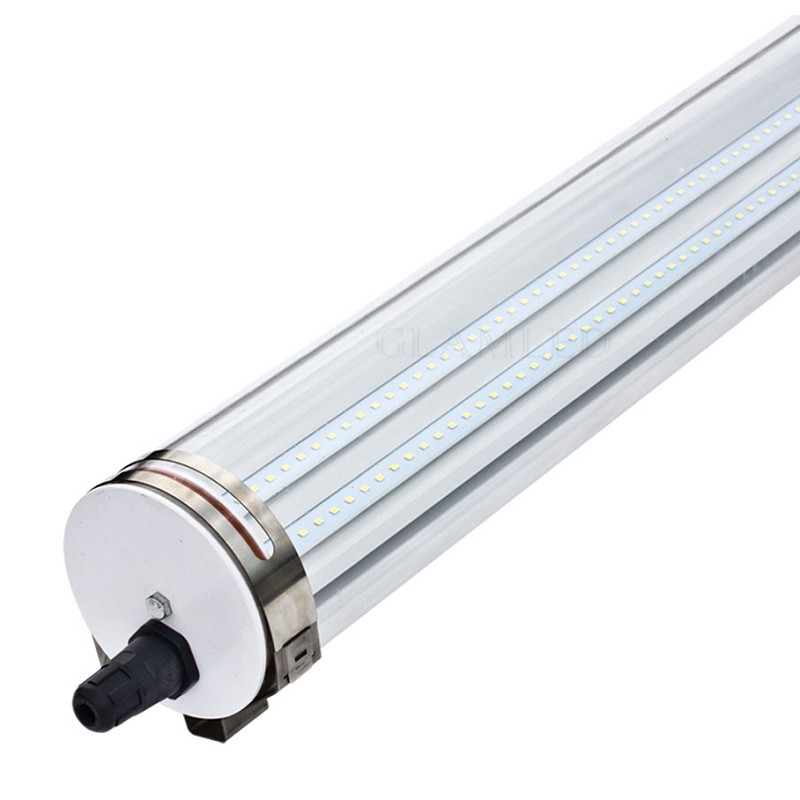

IP68 Emergency Kits LED Tri-roof Round Tube Light
IP68 LED Tri-proof Tube Light, available for Emergency Kits, RGB, DALI
Up to 85% energy saving compared to halogen lamp
No UV and near-IR radiation in the light beam
Environment friendly, without Mercury
Correspond CE ,RoHS
Long lifetime up to 50,000 hours
Great Reliability supports 5 years warranty
Parameters
| Item Number | JTL02-06-20W | JTL02-12-40W | JTL02-15-50W | ||||
| Power | 20W | 40W | 50W | ||||
| Fixture Luminous Flux | 2600lm | 5200lm | 6500lm | ||||
| Fixture Efficiency | 115lm/W-130lm/W | ||||||
| LED Chips | Epistar SMD2835 | ||||||
| CRI | 82 | ||||||
| Color Temp | 4000K (3000K,5000K, 6000K optional) | ||||||
| Beam Angle | 120° | ||||||
| IP/IK Rating | IP68K, IK10 | ||||||
| Power Supply | LIFUD, BOKE, AGT(UL listed) | ||||||
| Input Voltage | 200-240Vac / 100-277Vac ,47-63Hz | ||||||
| PF | ≥0.95 | ||||||
| Operating Temperature | -20℃ ~ +40℃ | ||||||
| Storage Temperature | -40℃ ~ +85℃ | ||||||
| Materials | Al6063+PC+Stainless teel / Al6063+PE+Stainless teel | ||||||
| Compliance | CE, EMC, LVD, ROHS | ||||||
| Dimming | DALI, 0-10V Dimming / Emergency kits / Zigbee wireless control are available. | ||||||
| Dimension | φ100*L600mm | φ100*L1200mm | φ100*L1500mm | ||||
| Package Size | 760*350*245mm(6pcs/carton) | 1370*350*245mm(6pcs/carton) | 1670*350*245mm(6pcs/carton) | ||||
| Net Weight | 9.5Kg | 14.5Kg | 18.6Kg | ||||
| Gross Weight | 13.0Kg | 19.0Kg | 25.0Kg | ||||
