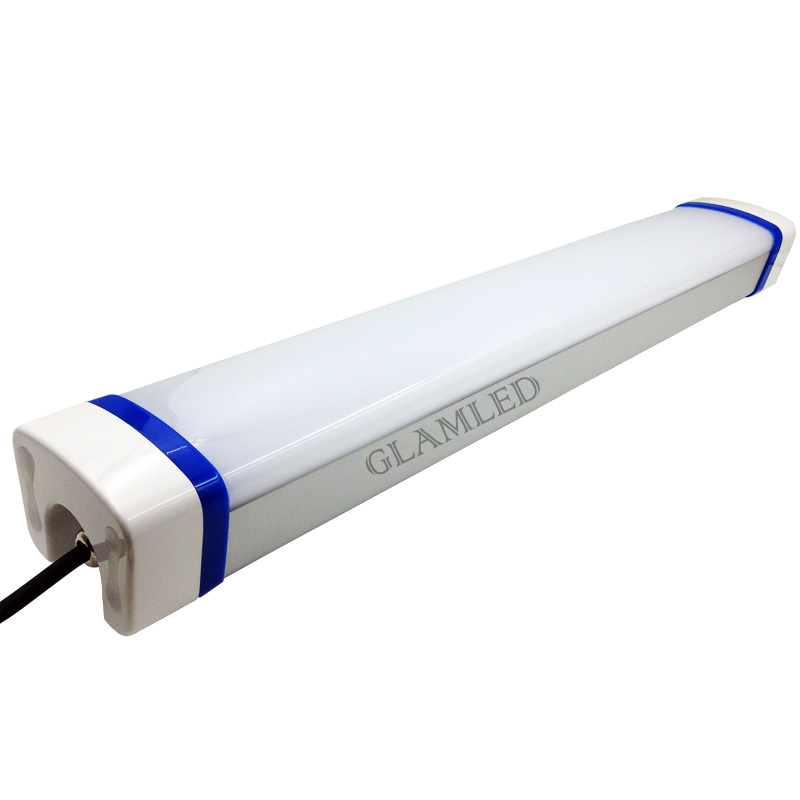

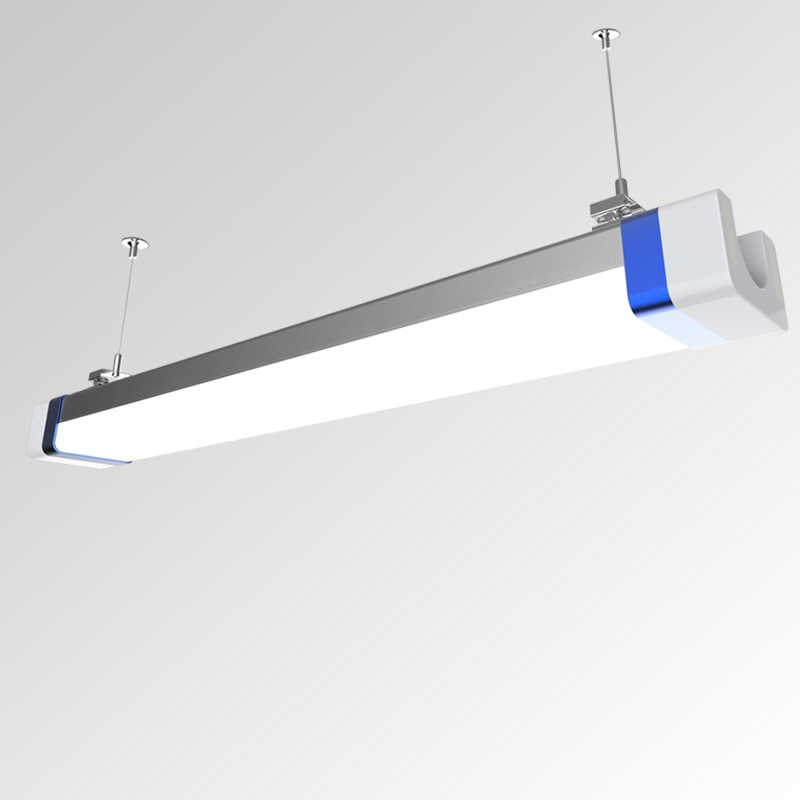

50W LED Tri-proof Light
Adopt high quality Epistar SMD2835 LED.
Up to 85% energy saving compared to halogen lamp
No UV and near-IR radiation in the light beam
Environment friendly, without Mercury
Correspond CE ,RoHS
Long lifetime up to 50,000 hours
Great Reliability supports 3 years warranty
Parameters
| Item Number | JTL01-06-20W | JTL01-06-30W | JTL01-12-40W | JTL01-12-50W | JTL01-15-60W | JTL01-15-70W | |
| Power | 20W | 30w | 40w | 50w | 60w | 70w | |
| Fixture Luminous Flux | 2600lm | 3900lm | 5200lm | 6500lm | 7800lm | 9100lm | |
| Fixture Efficiency | 115lm/W-130lm/W | ||||||
| LED chips | Epistar SMD2835 | ||||||
| CRI | 80 | ||||||
| Color temp | 4000K (3000K,5000K, 6000K optional) | ||||||
| Beam Angle | 120° | ||||||
| IP rating | IP65 | ||||||
| Power Supply | Lifud | ||||||
| Input voltage | 200-240Vac / 100-277Vac ,47-63Hz | ||||||
| PF | ≥0.95 | ||||||
| Operating Temperature | 0℃ ~ +40℃ | ||||||
| Storage Temperature | -5℃ ~ +55℃ | ||||||
| Materials | Aluminum6063 /PC | ||||||
| Compliance | cETL,DLC,CE,ROHS | ||||||

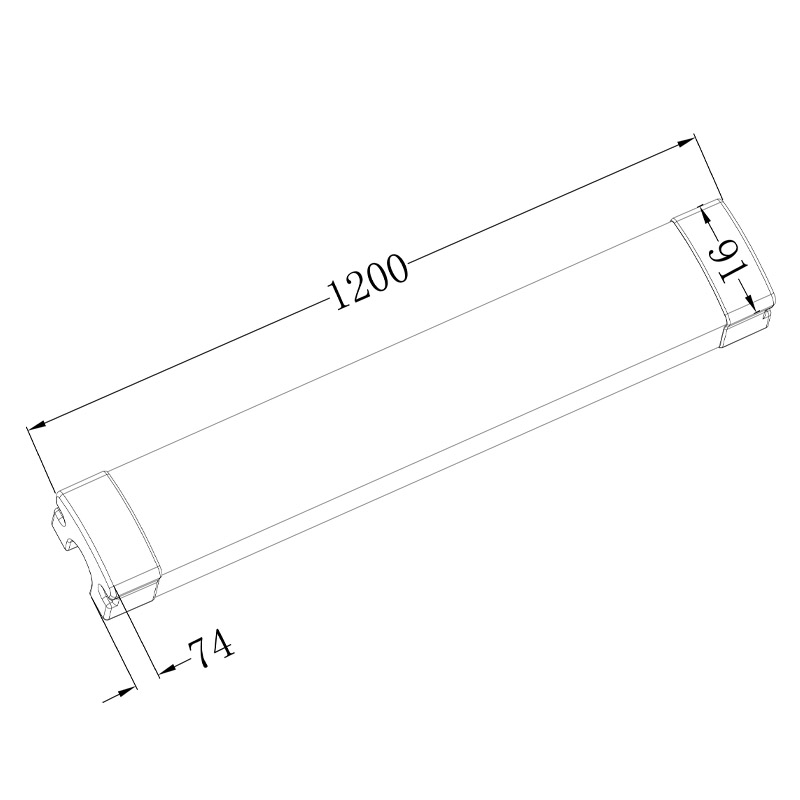

| Dimension | 600*91*74mm | 1200*91*74mm | 1500*91*74mm | ||||
| Package size | Outer carton | 660*260*220mm(6pcs/carton) | 1250*190*230mm(4pcs/carton) | 1550*190*230mm(4pcs/carton) | |||
| Net weight | 9.0Kg | 11.0Kg | 13.0Kg | ||||
| Gross weight | 12.0Kg | 13.0Kg | 15.0Kg | ||||
