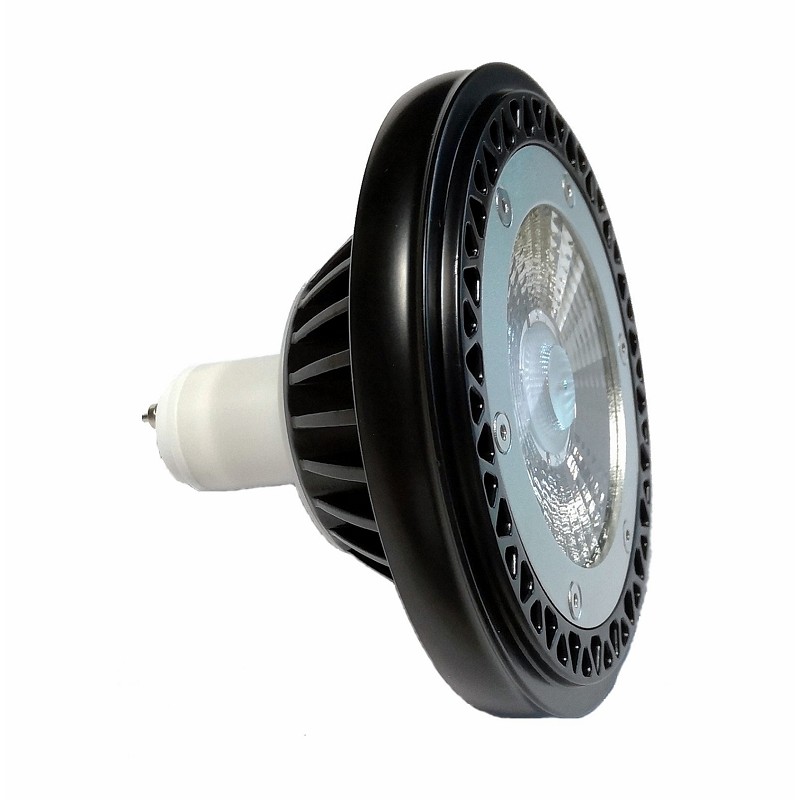

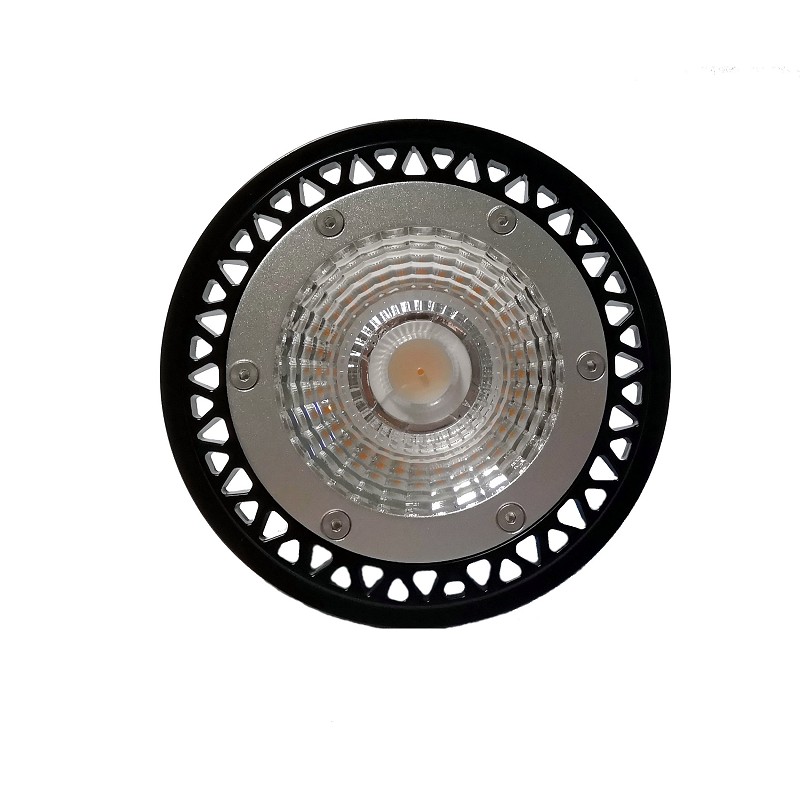

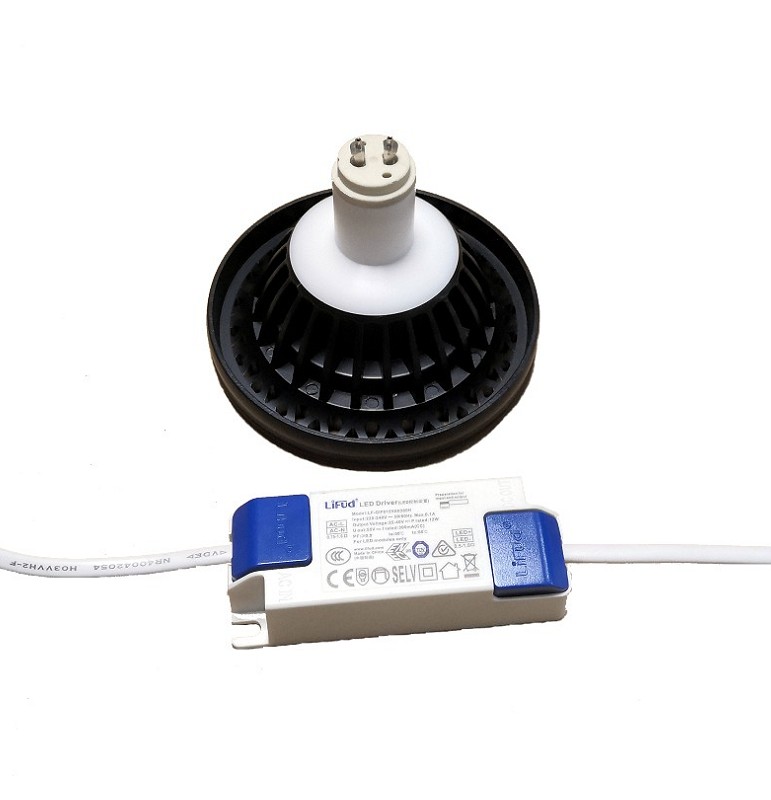

CREE COB LED AR111 GX8.5 Lamp,CDM-R111 Replacement
Adopt top quality CREE COB LED, CDM-R111 halogen replacement.
Up to 85% energy saving compared to 75W halogen lamp
No UV and near-IR radiation in the light beam
Environment friendly, without Mercury
Correspond CE ,RoHS
Long lifetime up to 50,000 hours
Great Reliability supports 3-5 years warranty
Parameters
| Item Number | JA1102-GX8.5-12W | JA1102-GX8.5-14W | |||
| Power | 12W | 14W | |||
| Fixture Luminous Flux | 1080lm | 1260lm | |||
| Base | GX8.5 / G53 / GU10 | ||||
| Fixture Efficiency | 80lm/W-90lm/W | ||||
| LED chips | CREE COB | ||||
| CRI | 82 | ||||
| Color temp | 3000K (2700K, 4000K, 5000K optional) | ||||
| Beam Angle | 10° / 24° / 38° | ||||
| IP rating | IP40 | ||||
| Dimmable | Optional | ||||
| Input voltage | 100-240Vac, 47-63Hz | ||||
| PF | ≥0.65 | ||||
| Operating Temperature | 0℃ ~ +40℃ | ||||
| Storage Temperature | -5℃ ~ +55℃ | ||||
| Materials | Aluminum /PC | ||||
| Compliance | EMC,LVD,ROHS | ||||
| Equivalent | 75W | ||||
| Dimension | Φ111*87.7mm | ||||
| Package size | Box size | 115*115*95mm(1pcs) | |||
| Outer carton | 660*280*235mm(20pcs) | ||||
| Net weight | 8.0Kg | ||||
| Gross weight | 9.0Kg | ||||
Considerations |
No water-proof,for indoor usage only; Can not be used in sealed fixtures. | ||||
